Removal [10/2017 - ]: Procedure

  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 12 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 12 [09/2018 - 09/2019] , or refer to PROCEDURE - Step 12 [09/2019 - 10/2020] , or refer to PROCEDURE - Step 12 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 12 [11/2021 - 10/2022] , or refer to PROCEDURE - Step 12 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 12 [10/2023 - ]

  2. REMOVE RADIATOR COVER PLATE

    Refer to PROCEDURE - Step 3 [10/2017 - 10/2020] , or refer to PROCEDURE - Step 3 [10/2020 - 10/2023] , or refer to PROCEDURE - Step 3 [10/2023 - ]

  3. REMOVE UPPER RADIATOR SUPPORT SEAL

    Refer to PROCEDURE - Step 2 [10/2017 - 10/2020] , or refer to PROCEDURE - Step 2 [10/2020 - 10/2023] , or refer to PROCEDURE - Step 2 [10/2023 - ]

  4. REMOVE LOWER RADIATOR AIR DEFLECTOR

    Refer to PROCEDURE - Step 4 [10/2017 - 10/2020] , or refer to PROCEDURE - Step 4 [10/2020 - 10/2023] , or refer to PROCEDURE - Step 4 [10/2023 - ]

  5. REMOVE FENDER APRON BRACE SUB-ASSEMBLY RH

    Refer to PROCEDURE - Step 14 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 14 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 14 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 14 [11/2021 - 10/2022] , or refer to PROCEDURE - Step 14 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 14 [10/2023 - ]

  6. REMOVE INVERTER MOTOR CABLE BRACKET ASSEMBLY

    Refer to PROCEDURE - Step 13 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 13 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 13 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 13 [11/2021 - 10/2022] , or refer to PROCEDURE - Step 13 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 13 [10/2023 - ]

  7. REMOVE AIR FUEL RATIO SENSOR (for Bank 1 Sensor 1)
    1. Disconnect the air fuel ratio sensor connector.
      GTY810709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 3 wire harness clamps.
    3. Using SST, remove the air fuel ratio sensor from the exhaust manifold assembly RH.
      • SST: 09224-00012
      GTY819821Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE AIR FUEL RATIO SENSOR (for Bank 2 Sensor 1)
    1. Disconnect the air fuel ratio sensor connector.
      GTY810705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 4 wire harness clamps.
    3. Using SST, remove the air fuel ratio sensor from the exhaust manifold assembly LH.
      • SST: 09224-00012
      GTY819073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE EXHAUST MANIFOLD ASSEMBLY RH

    Refer to REMOVAL [10/2017 - 10/2020] , or refer to REMOVAL [10/2020 - 10/2023] , or refer to REMOVAL [10/2023 - ]

  10. REMOVE EXHAUST MANIFOLD ASSEMBLY LH

    Refer to REMOVAL [10/2017 - 10/2020] , or refer to REMOVAL [10/2020 - 10/2023] , or refer to REMOVAL [10/2023 - ]

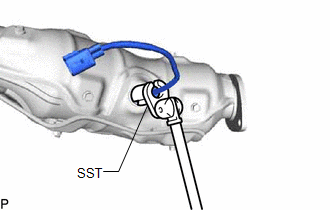

  11. REMOVE AIR FUEL RATIO SENSOR (for Bank 1 Sensor 2)
    1. Using SST, remove the air fuel ratio sensor from the exhaust manifold assembly RH.
      • SST: 09224-00012
      GTY813340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

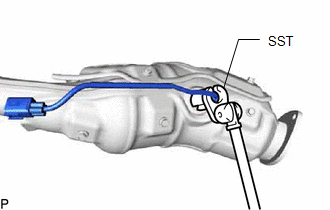

  12. REMOVE AIR FUEL RATIO SENSOR (for Bank 2 Sensor 2)
    1. Using SST, remove the air fuel ratio sensor from the exhaust manifold assembly LH.
      • SST: 09224-00012
      GTY828956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
