Removal [10/2017 - ]: Procedure

REMOVE RADIATOR COVER PLATE
Refer to PROCEDURE - Step 3 [10/2017 - 10/2020] , or refer to PROCEDURE - Step 3 [10/2020 - 10/2023] , or refer to PROCEDURE - Step 3 [10/2023 - ]
REMOVE UPPER RADIATOR SUPPORT SEAL
Refer to PROCEDURE - Step 2 [10/2017 - 10/2020] , or refer to PROCEDURE - Step 2 [10/2020 - 10/2023] , or refer to PROCEDURE - Step 2 [10/2023 - ]
REMOVE LOWER RADIATOR AIR DEFLECTOR
Refer to PROCEDURE - Step 4 [10/2017 - 10/2020] , or refer to PROCEDURE - Step 4 [10/2020 - 10/2023] , or refer to PROCEDURE - Step 4 [10/2023 - ]

REMOVE MASS AIR FLOW METER SUB-ASSEMBLY

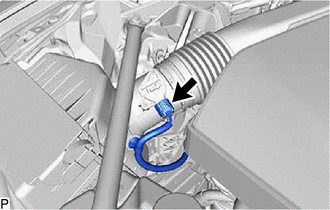

Disconnect the mass air flow meter sub-assembly connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

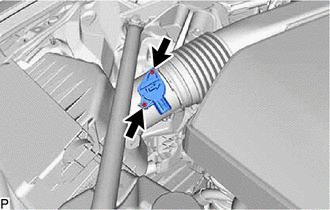

Remove the 2 screws and mass air flow meter sub-assembly.

NOTE:

If the mass air flow meter sub-assembly has been struck or dropped, replace it.
