Inspection [10/2017 - ]: Procedure
- INSPECT NO. 2 SATELLITE SWITCH SET (ABSORBER CONTROL SWITCH)

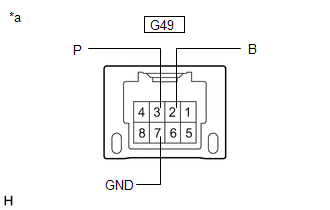

- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Switch Condition Specified Condition G49-3 (P) - G49-7 (GND) Combination switch assembly knob turned and held at S/S+ position Below 50 Ω Combination switch assembly knob not turned to S/S+ position 10 kΩ or higher G49-2 (B) - G49-7 (GND) Normal/Custom mode switch pushed and held Below 50 Ω Normal/Custom mode switch not pushed 10 kΩ or higher If the result is not as specified, replace the No. 2 satellite switch set (absorber control switch).
*a Component without harness connected

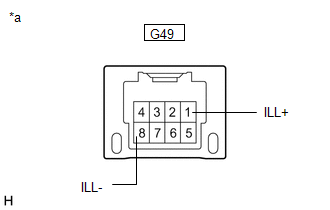

(No. 2 Satellite Switch Set (Absorber Control Switch)) - Apply battery voltage between the terminals of the switch, and check the illumination condition of the absorber control switch (combination switch assembly).
Standard
Tester Connection Specified Condition Battery positive (+) → G49-1 (ILL+)
Battery negative (-) → G49-8 (ILL-)Illuminates If the result is not as specified, replace the No. 2 satellite switch set (absorber control switch).
*a Component without harness connected
(No. 2 Satellite Switch Set (Absorber Control Switch))
- Measure the resistance according to the value(s) in the table below.
