Components [10/2020 - 10/2022]

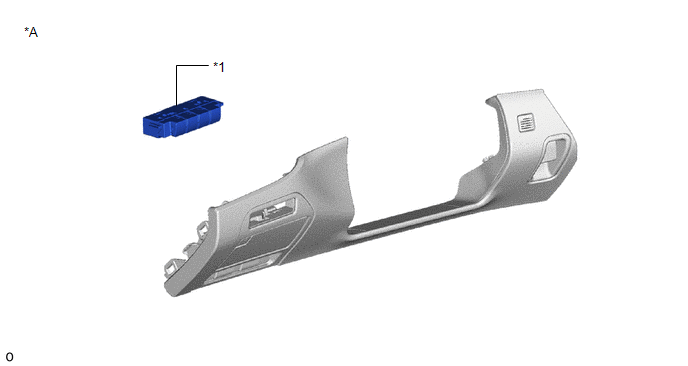

Fig 1: Height Control Switch Replacement Components [10/2020 - 10/2022] (1 Of 2)
GTY968722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A w/ Advanced Park - -
*1 INTEGRATION CONTROL AND PANEL ASSEMBLY (HEIGHT CONTROL SWITCH) - -

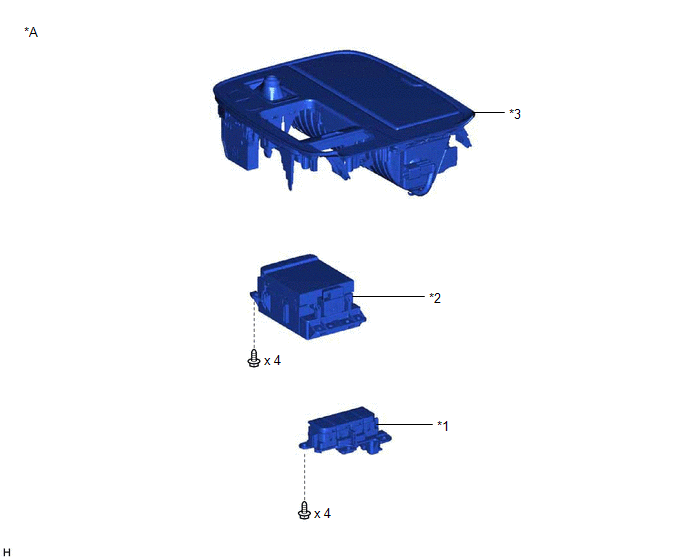

Fig 2: Height Control Switch Replacement Components [10/2020 - 10/2022] (2 Of 2)
GTY968439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A w/o Advanced Park - -
*1 INTEGRATION CONTROL AND PANEL ASSEMBLY (HEIGHT CONTROL SWITCH) *2 REMOTE OPERATION CONTROLLER ASSEMBLY
*3 UPPER CONSOLE PANEL SUB-ASSEMBLY - -
