Installation [09/2015 - ]: Procedure

INSTALL FRONT SPEED SENSOR LH

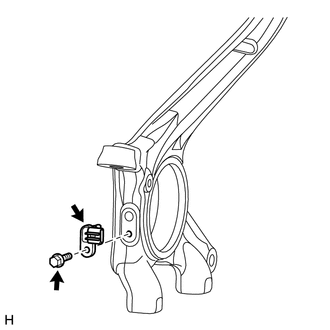

Install the speed sensor with the bolt.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

NOTE:

Make sure there are no pieces of iron or other foreign matter attached to the sensor tip.
While inserting the speed sensor into the knuckle hole, do not strike or damage the sensor tip.
After installing the speed sensor, make sure there is no clearance or foreign matter between the sensor stay part and the knuckle.
Make sure there is no foreign matter attached to the speed sensor rotor.

INSTALL FRONT SKID CONTROL SENSOR WIRE LH

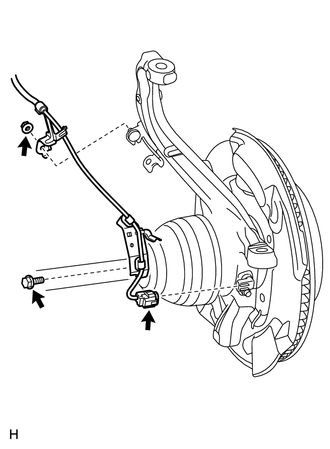

Connect the 2 connectors.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

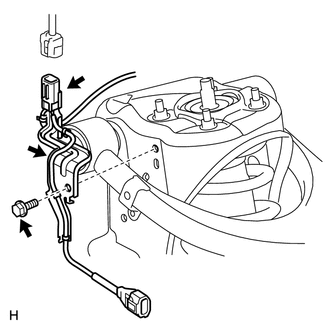

Install the harness clamp with the bolt.
Torque: 13 N*m (127 kgf*cm, 9 ft.*lbf)
NOTE:
- When installing the clamp, do not twist the wire harness.
- Make sure the clamp rotation stopper touches the installation position.

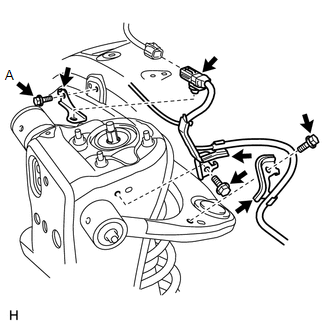

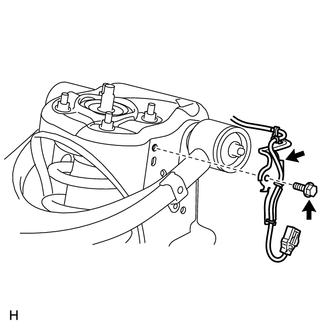

Install the 2 harness clamps with the 2 bolts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 13 N*m (127 kgf*cm, 9 ft.*lbf)

NOTE:

When installing the clamps, do not twist the wire harness.
Make sure the clamp rotation stopper touches the installation position.

Install the harness clamp with the nut.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 13 N*m (127 kgf*cm, 9 ft.*lbf)

NOTE:

When installing the clamp, do not twist the wire harness.
Make sure the clamp rotation stopper touches the installation position.

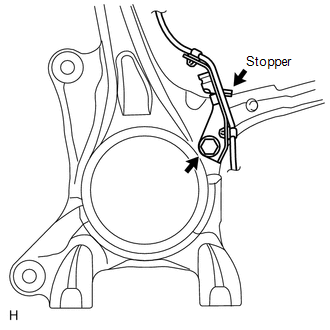

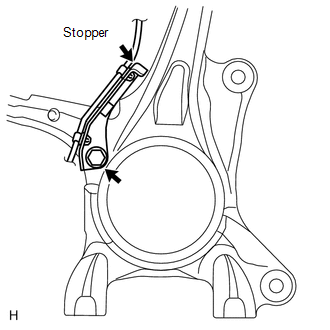

Install the harness clamp with the bolt.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 13 N*m (127 kgf*cm, 9 ft.*lbf)

NOTE:

Install the bracket so that the rotation stopper touches the knuckle.

Connect the speed sensor connector.
NOTE:
Securely connect the connector.

INSTALL FRONT SPEED SENSOR RH

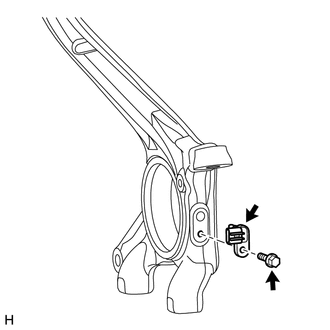

Install the speed sensor with the bolt.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

NOTE:

Make sure there are no pieces of iron or other foreign matter attached to the sensor tip part.
While inserting the speed sensor into the knuckle hole, do not strike or damage the sensor tip part.
After installing the speed sensor, make sure there is no clearance or foreign matter between the sensor stay part and the knuckle.
Make sure there is no foreign matter attached to the speed sensor rotor.

INSTALL FRONT SKID CONTROL SENSOR WIRE RH

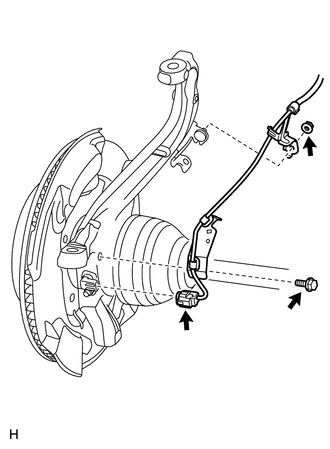

Install the skid control sensor clamp with the bolt (labeled A).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for bolt A

Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

Attach the connector to the skid control sensor clamp and then connect the connector.

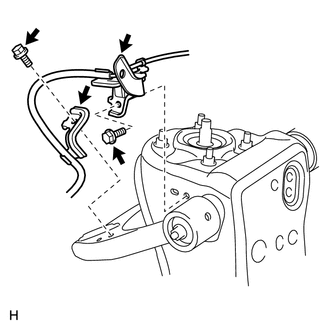

Install the 2 harness clamps with the 2 bolts.
Torque: 13 N*m (127 kgf*cm, 9 ft.*lbf)
NOTE:
- When installing the clamps, do not twist the wire harness.
- Make sure the clamp rotation stopper touches the installation position.

Install the harness clamp with the bolt.

Torque: 13 N*m (127 kgf*cm, 9 ft.*lbf)

Connect the connector.

Install the harness clamp with the nut.

Torque: 13 N*m (127 kgf*cm, 9 ft.*lbf)

NOTE:

When installing the clamp, do not twist the wire harness.
Make sure the clamp rotation stopper touches the installation position.

Install the harness clamp with the bolt.

Torque: 13 N*m (127 kgf*cm, 9 ft.*lbf)

NOTE:

Install the bracket so that the rotation stopper touches the knuckle.

Connect the speed sensor connector.
NOTE:
Securely connect the connector.

INSTALL FRONT WHEEL
Torque: 131 N*m (1336 kgf*cm, 97 ft.*lbf)
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2015 - 08/2019] Refer to INITIALIZATION [08/2019 - ] ).
CHECK SPEED SENSOR SIGNAL
1. Check the speed sensor signal (Refer to TEST MODE PROCEDURE [09/2015 - 08/2017] Refer to TEST MODE PROCEDURE [08/2017 - ] ).
