Removal [09/2015 - ]: Procedure

PRECAUTION
NOTE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (Refer to PRECAUTION [09/2015 - ] ).
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2015 - 08/2019] Refer to INITIALIZATION [08/2019 - ] ).
REMOVE REAR WHEEL

REMOVE SKID CONTROL SENSOR WIRE

Disconnect the speed sensor LH connector.

GTY599189

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Detach the 2 clamps and remove the bolt and sensor clamp.

GTY546194

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Detach the 5 clamps.

GTY546195

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Detach the 3 clamps.

GTY546192

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disconnect the speed sensor RH connector.

GTY546193

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

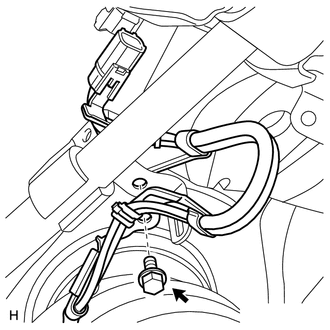

Remove the bolt.

GTY592742

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

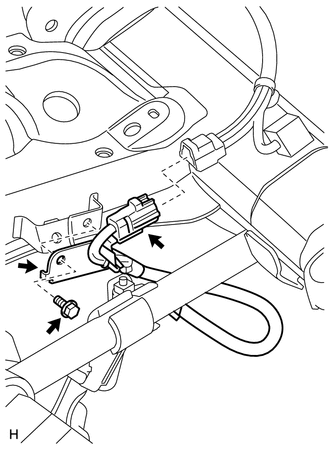

Disconnect the connector, and remove the bolt and skid control sensor wire.

GTY592745

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE REAR SPEED SENSOR LH

Remove the nut and speed sensor.

GTY599159

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Pull out the sensor while trying as much as possible not to rotate it.

REMOVE REAR SPEED SENSOR RH

Remove the nut and speed sensor.

GTY546061

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Pull out the sensor while trying as much as possible not to rotate it.
