Inspection [09/2015 - ]: Procedure
- INSPECT INTEGRATION CONTROL AND PANEL ASSEMBLY (VSC OFF SWITCH)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

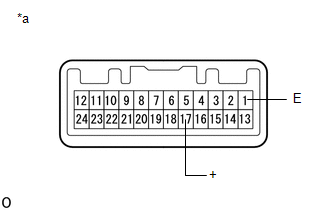

Tester Connection Switch Condition Specified Condition 1 (E) - 17 (+) Pressed Below 1 Ω Not pressed 10 kΩ or higher TEXT IN ILLUSTRATION*a Component without harness connected
(Integration Control and Panel Assembly (VSC OFF Switch))If the result is not as specified, replace the integration control and panel assembly (VSC OFF switch).
- Measure the resistance according to the value(s) in the table below.
