Components [09/2015 - ]

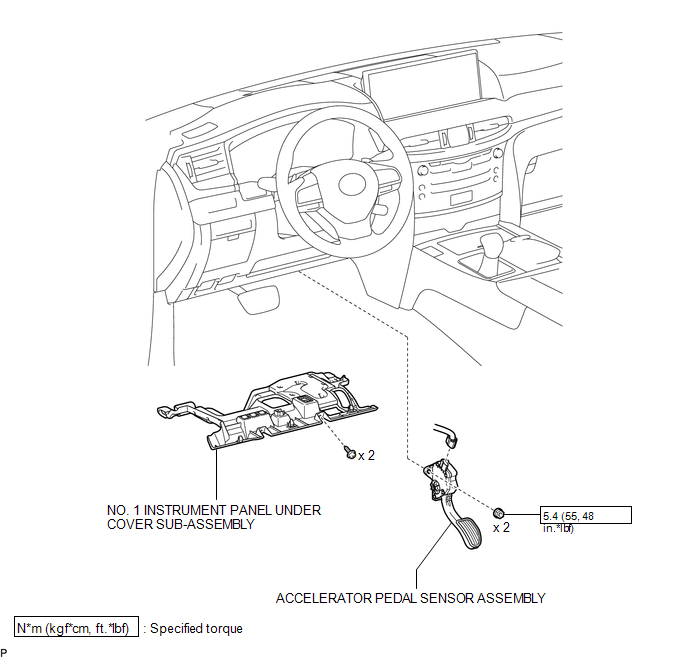

Fig 1: Accelerator Pedal Replacement Components With Torque Specifications
GTY634468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
