Components [09/2015 - ]

Fig 1: Camshaft Position Sensor Replacement Components (1 Of 3)
GTY964519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

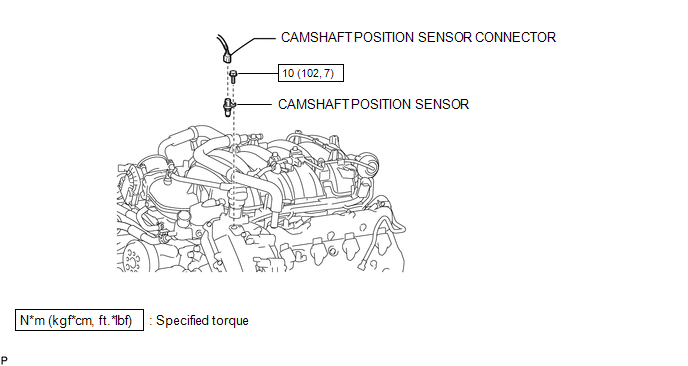

Fig 2: Camshaft Position Sensor Replacement Components With Torque Specifications (2 Of 3)
GTY654675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

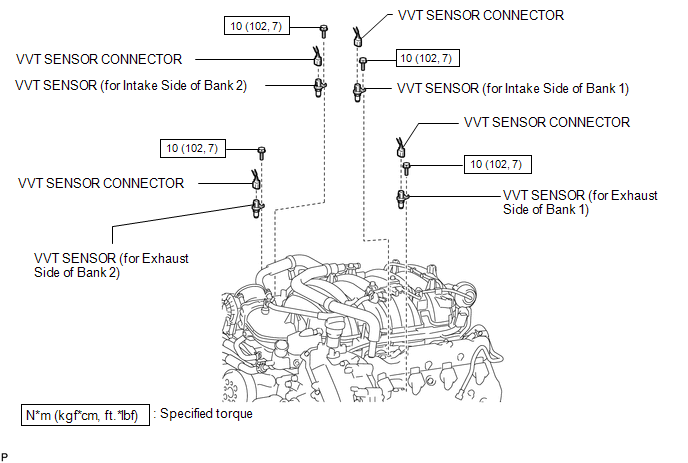

Fig 3: Camshaft Position Sensor Replacement Components With Torque Specifications (3 Of 3)
GTY649367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
