Components [09/2015 - ]

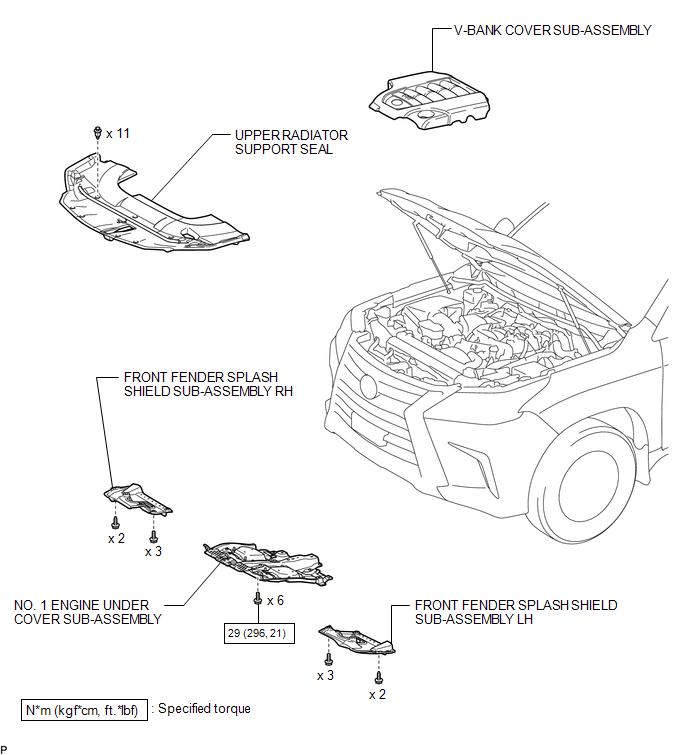

Fig 1: Engine Coolant Temperature Sensor Replacement Components With Torque Specifications (1 Of 2)
GTY633565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

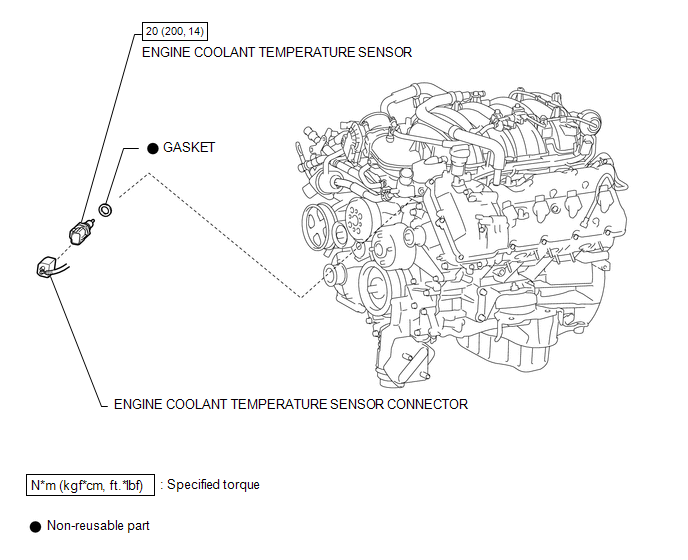

Fig 2: Engine Coolant Temperature Sensor Replacement Components With Torque Specifications (2 Of 2)
GTY638717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
