Removal [09/2015 - ]: Procedure

  1. REMOVE UPPER RADIATOR SUPPORT SEAL

    Refer to PROCEDURE - Step 3

  2. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH

    Refer to PROCEDURE - Step 2

  3. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 1

  4. REMOVE NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  5. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 5

  6. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5

  7. REMOVE ENGINE COOLANT TEMPERATURE SENSOR

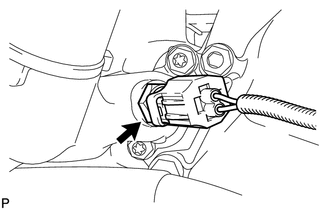

    GTY588685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the sensor connector.
    2. Using a 19 mm deep socket wrench, remove the sensor.
    3. Remove the gasket from the sensor.
