Components [09/2015 - ]

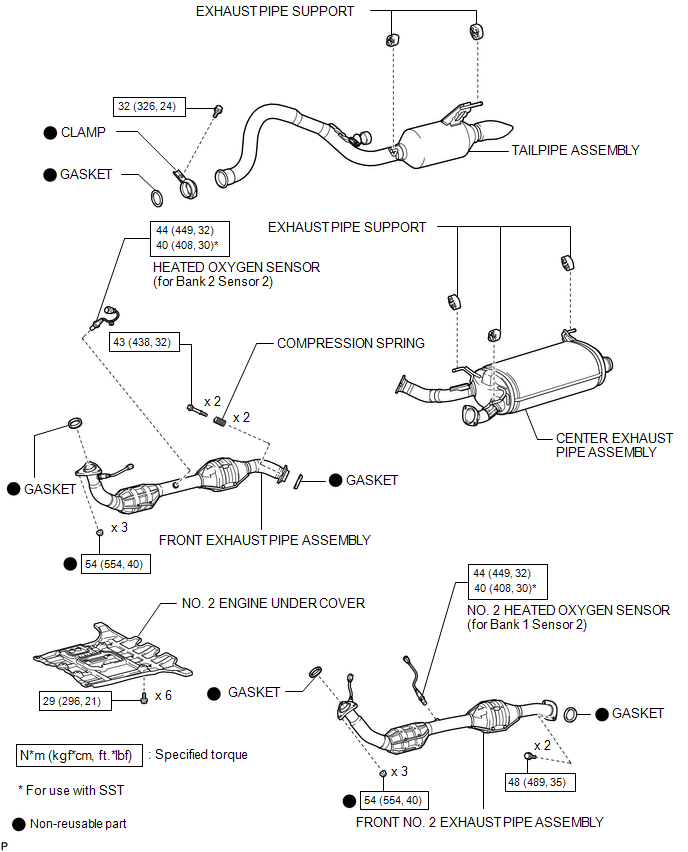

Fig 1: Heated Oxygen Sensor Replacement Components With Torque Specifications
GTY617079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
