Removal [09/2015 - ]: Procedure

  1. REMOVE INTAKE MANIFOLD
    1. Remove the intake manifold (Refer to REMOVAL [09/2015 - ] ).
  2. REMOVE NO. 2 ENGINE COVER

    Refer to PROCEDURE - Step 6

  3. REMOVE NO. 1 ENGINE COVER

    Refer to PROCEDURE - Step 8

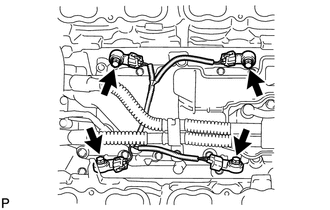

  4. REMOVE KNOCK SENSOR
    GTY147693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the 4 knock sensor connectors.
    2. Remove the 4 bolts and 4 knock sensors.
