Installation [09/2015 - ]: Procedure
- INSTALL THROTTLE BODY ASSEMBLY

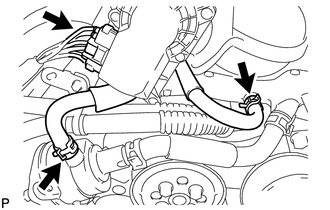

- Install the 2 water by-pass hoses to the throttle body.
- Install a new gasket to the intake air surge tank.
HINT:

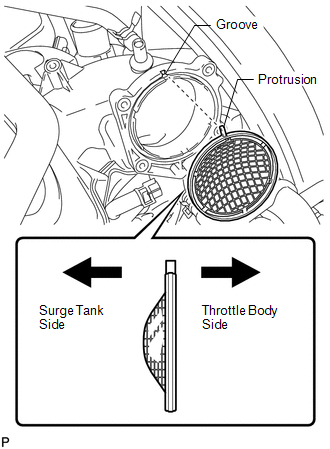

Align the protrusion of the gasket with the groove of the intake air surge tank.

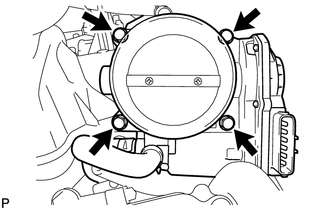

- Install the throttle body with the 4 bolts.
Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
HINT:
Perform "Inspection After Repairs" after replacing the throttle body assembly (Refer to INITIALIZATION [09/2015 - ] ).
- Connect the throttle position sensor and control motor connector.
- Connect the 2 water by-pass hoses.
- INSTALL AIR CLEANER HOSE ASSEMBLY
Refer to PROCEDURE - Step 10
- ADD ENGINE COOLANT
Refer to PROCEDURE - Step 6
- INSPECT FOR COOLANT LEAK
Refer to PROCEDURE - Step 1
- CHECK THROTTLE BODY ASSEMBLY
See step 1
- INSTALL NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 19
- INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 15
- INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH
Refer to PROCEDURE - Step 16
- PERFORM INITIALIZATION NOTE:
Perform the following procedure after replacing the ECM, throttle body assembly or any throttle body components. The following procedure should also be performed if the throttle body is cleaned.
- Turn the ignition switch to ON without operating the accelerator pedal.NOTE:
If the accelerator pedal is operated, perform the above steps again.
- Connect the Techstream to the DLC3 and clear the DTCs (Refer to DTC CHECK / CLEAR [09/2015 - ] ).
- Perform the "Inspection After Repairs" (Refer to INITIALIZATION [09/2015 - ] ).
- Start the engine and check that the MIL is not illuminated and that the idle speed is within the specified range when the A/C is switched off after the engine is warmed up.
Standard
Condition Engine Idle Speed A/C switched off 650 to 750 rpm NOTE:- Be sure to perform this step with all accessories off.
- Make sure that the shift lever is in N of P.
- Enter the following menus: Powertrain / Engine and ECT / Data List / All Data / Throttle Sensor Volt %. Fully depress the accelerator pedal and check that the value is 60% or more.
- Perform a road test and confirm that there are no abnormalities.
- Turn the ignition switch to ON without operating the accelerator pedal.
- INSTALL V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 69
- INSTALL UPPER RADIATOR SUPPORT SEAL
Refer to PROCEDURE - Step 14
