Inspection [09/2015 - ]: Procedure
- INSPECT PRE-COLLISION SYSTEM CANCEL SWITCH ASSEMBLY
- Measure the resistance according to the value(s) in the table below.STANDARD RESISTANCE
Tester Connection Switch Condition Specified Condition 8 (ECU) - 5 (GND) Pre-collision system cancel switch not pressed 10 kΩ or higher Pre-collision system cancel switch pressed Below 1 Ω If the result is not as specified, replace the pre-collision system cancel switch assembly.

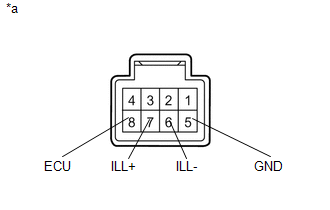

TEXT IN ILLUSTRATION* a Component without harness connected
(Pre-collision System Cancel Switch Assembly) - Apply battery voltage to the pre-collision cancel switch assembly and check that it illuminates.OK
Tester Connection Switch Condition Battery positive (+) → Terminal 7 (ILL+) Battery negative (-) → Terminal 6 (ILL-) Illuminates If the result is not as specified, replace the pre-collision cancel switch assembly.
- Measure the resistance according to the value(s) in the table below.
