Removal [09/2015 - ]: Procedure

  1. REMOVE INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 13

  2. REMOVE NO. 1 SWITCH HOLE BASE

    Refer to PROCEDURE - Step 14

  3. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 18

  4. REMOVE LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 1

  5. REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 21

  6. REMOVE PRE-COLLISION SYSTEM CANCEL SWITCH ASSEMBLY

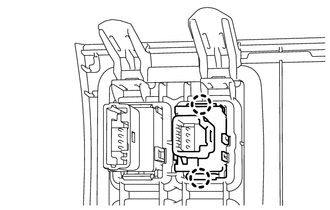

    1. Detach the 2 claws and remove the pre-collision system cancel switch assembly.
      GTY661676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
