Components [09/2015 - ]

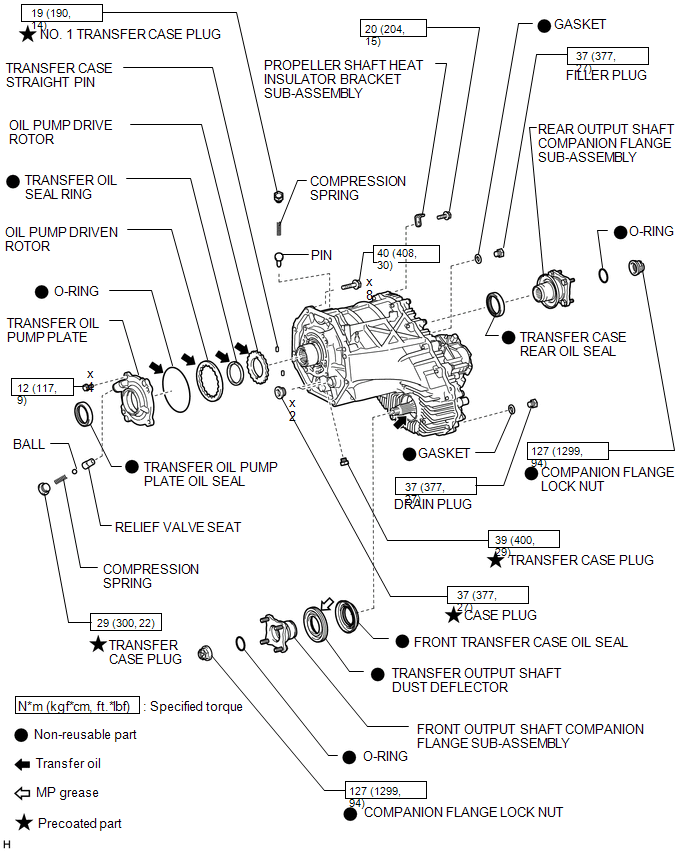

Fig 1: Transfer Assembly Replacement Components With Torque Specifications (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

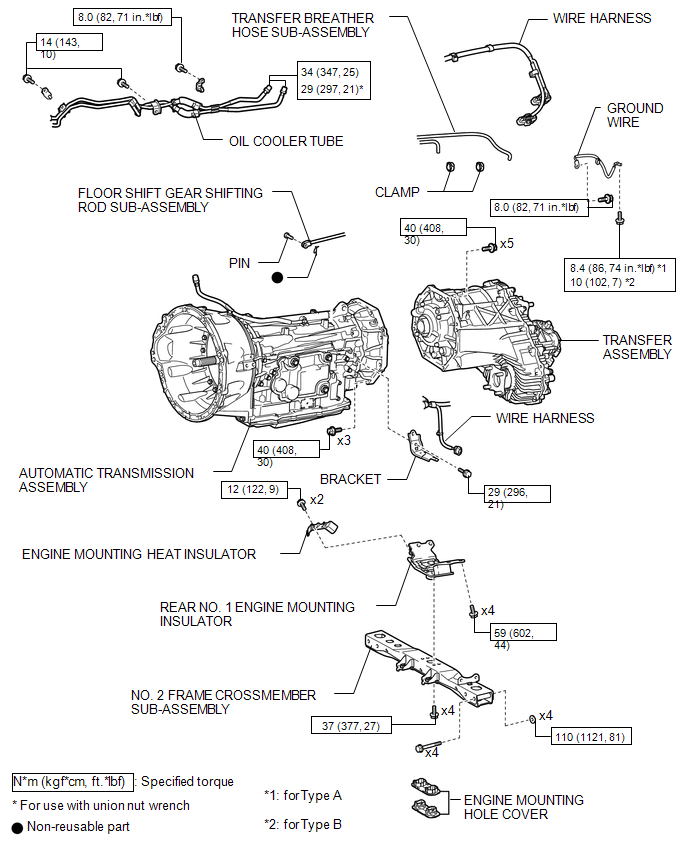

Fig 2: Transfer Assembly Replacement Components With Torque Specifications (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

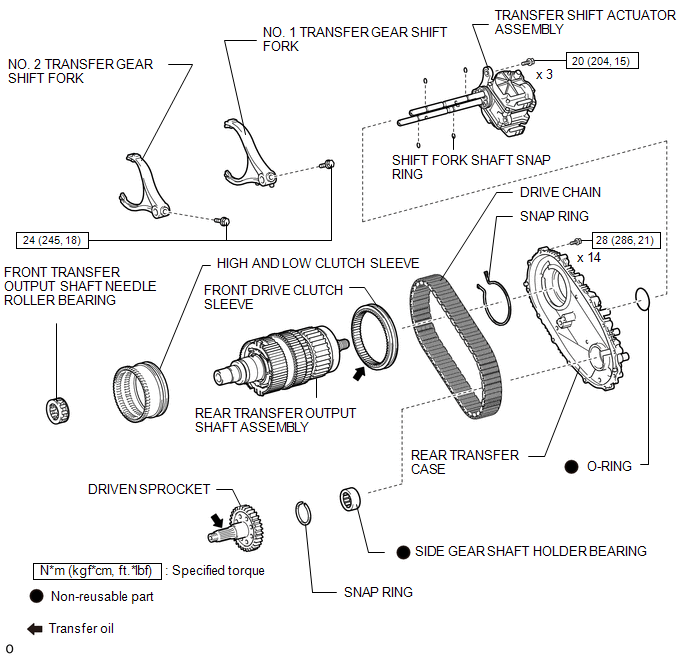

Fig 3: Transfer Assembly Replacement Components With Torque Specifications (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

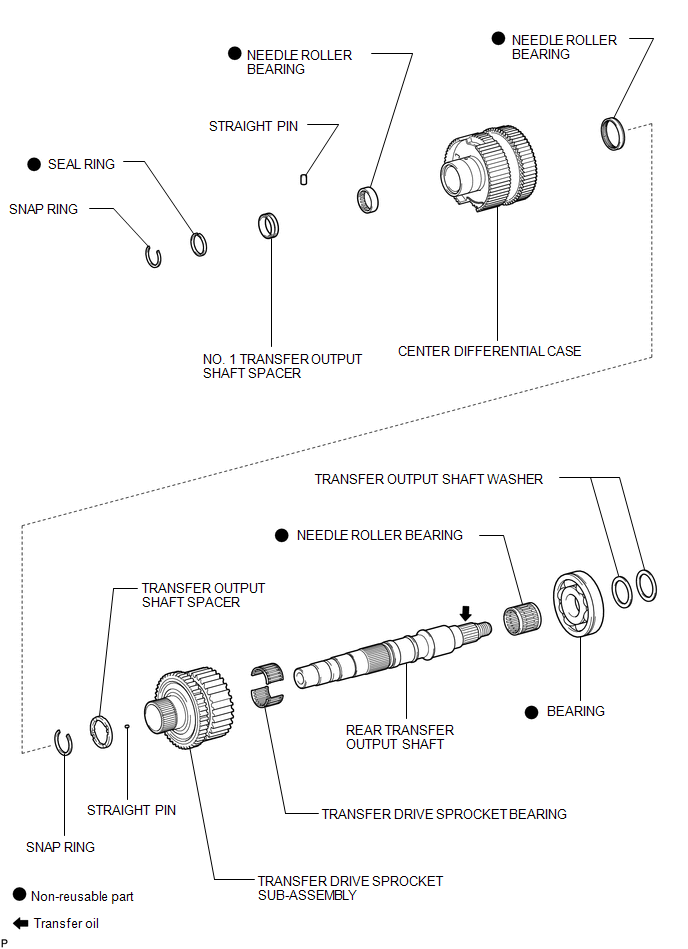

Fig 4: Transfer Assembly Replacement Components With Torque Specifications (4 Of 6)

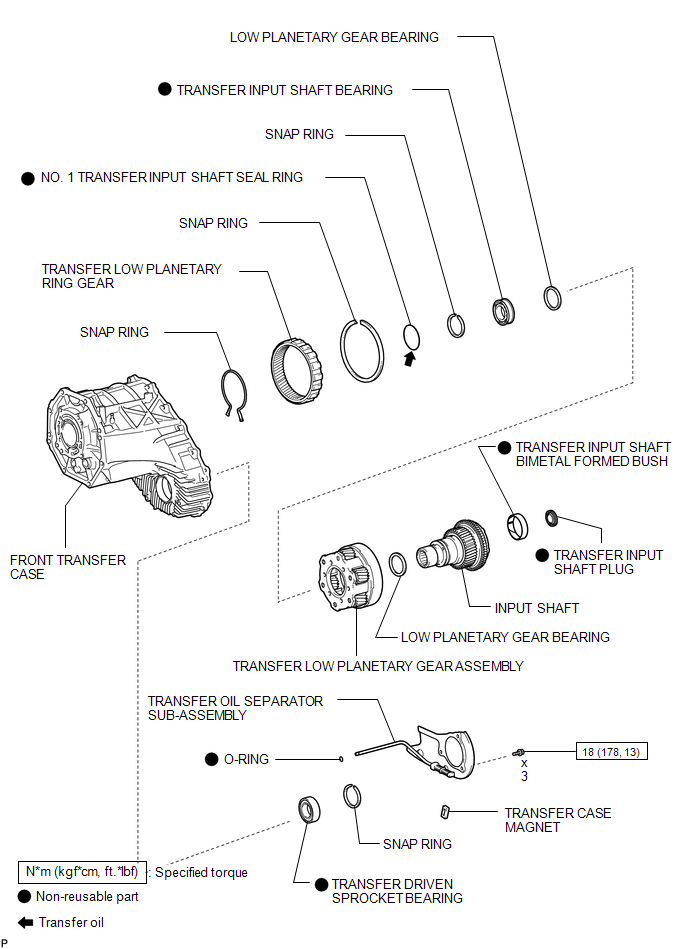

Fig 5: Transfer Assembly Replacement Components With Torque Specifications (5 Of 6)

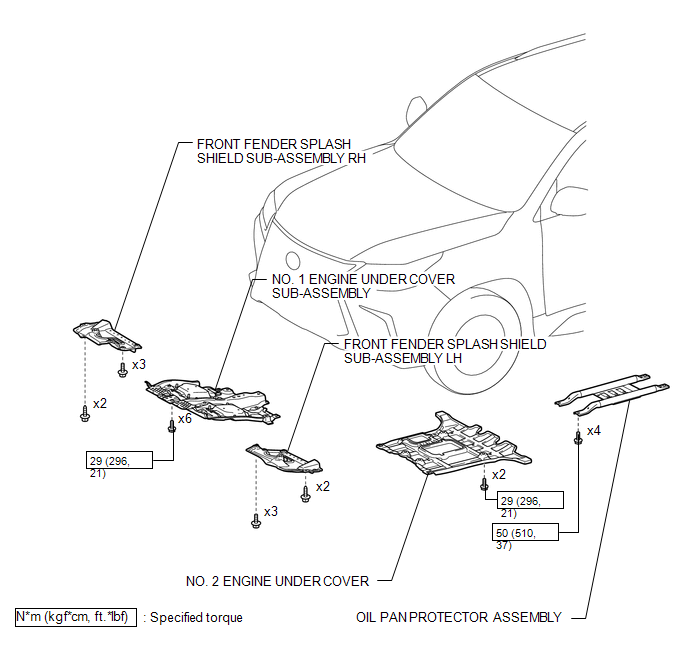

Fig 6: Transfer Assembly Replacement Components (6 Of 6)
