Removal [10/2014 - ]: Procedure

REMOVE CONSOLE ARMREST ASSEMBLY
Refer to PROCEDURE - Step 5 [10/2014 - 09/2017] , or refer to PROCEDURE - Step 5 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 5 [05/2019 - ]
REMOVE UPPER REAR CONSOLE PANEL
Refer to PROCEDURE - Step 6 [10/2014 - 09/2017] , or refer to PROCEDURE - Step 6 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 6 [05/2019 - ]
REMOVE UPPER NO. 2 CONSOLE PANEL GARNISH
Refer to PROCEDURE - Step 7 [10/2014 - 09/2017] , or refer to PROCEDURE - Step 7 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 7 [05/2019 - ]
REMOVE UPPER NO. 1 CONSOLE PANEL GARNISH
Refer to PROCEDURE - Step 8 [10/2014 - 09/2017] , or refer to PROCEDURE - Step 8 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 8 [05/2019 - ]
REMOVE INSTRUMENT SIDE PANEL LH
Refer to PROCEDURE - Step 9 [10/2014 - 09/2017] , or refer to PROCEDURE - Step 9 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 9
REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
Refer to PROCEDURE - Step 10 [10/2014 - 09/2017] , or refer to PROCEDURE - Step 10 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 10 [05/2019 - ]
REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 11 [10/2014 - 09/2017] , or refer to PROCEDURE - Step 11 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 11 [05/2019 - ]
REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL
Refer to PROCEDURE - Step 12 [10/2014 - 09/2017] , or refer to PROCEDURE - Step 12 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 12 [05/2019 - ]
REMOVE NO. 1 SWITCH HOLE BASE
Refer to PROCEDURE - Step 13 [10/2014 - 09/2017] , or refer to PROCEDURE - Step 13 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 13 [05/2019 - ]
REMOVE INSTRUMENT SIDE PANEL RH
Refer to PROCEDURE - Step 14 [10/2014 - 09/2017] , or refer to PROCEDURE - Step 14 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 14 [05/2019 - ]
REMOVE NO. 2 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
Refer to PROCEDURE - Step 15 [10/2014 - 09/2017] , or refer to PROCEDURE - Step 15 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 15 [05/2019 - ]
REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
Refer to PROCEDURE - Step 16 [10/2014 - 09/2017] , or refer to PROCEDURE - Step 18 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 18 [05/2019 - ]
REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
Refer to PROCEDURE - Step 13 [10/2014 - 09/2017] , or refer to PROCEDURE - Step 15 [09/2017 - ]
REMOVE UPPER REAR CONSOLE PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 14 [10/2014 - 09/2017] , or refer to PROCEDURE - Step 16 [09/2017 - ]
REMOVE SHIFT POSITION INDICATOR
Refer to PROCEDURE - Step 3 [10/2014 - ]

REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY (VSC OFF SWITCH)

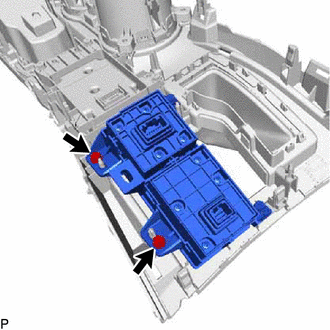

Remove the 2 screws and integration control and panel assembly (VSC OFF switch) from the upper rear console panel sub-assembly.
