Components [10/2014 - ]

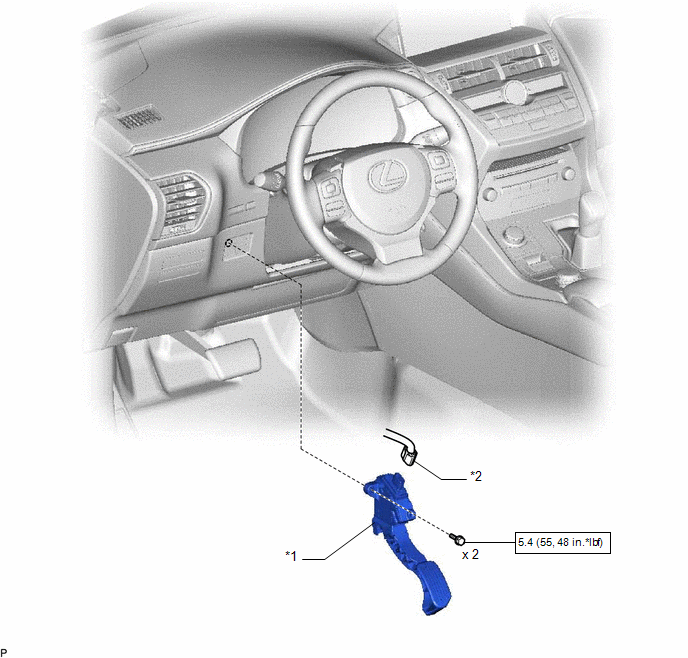

Fig 1: Accelerator Pedal Replacement Components With Torque Specifications
GTY498567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ACCELERATOR PEDAL SENSOR ASSEMBLY *2 ACCELERATOR PEDAL SENSOR CONNECTOR
N.m (kgf/cm, ft.lbf): Specified torque - -
