Components [10/2014 - ]

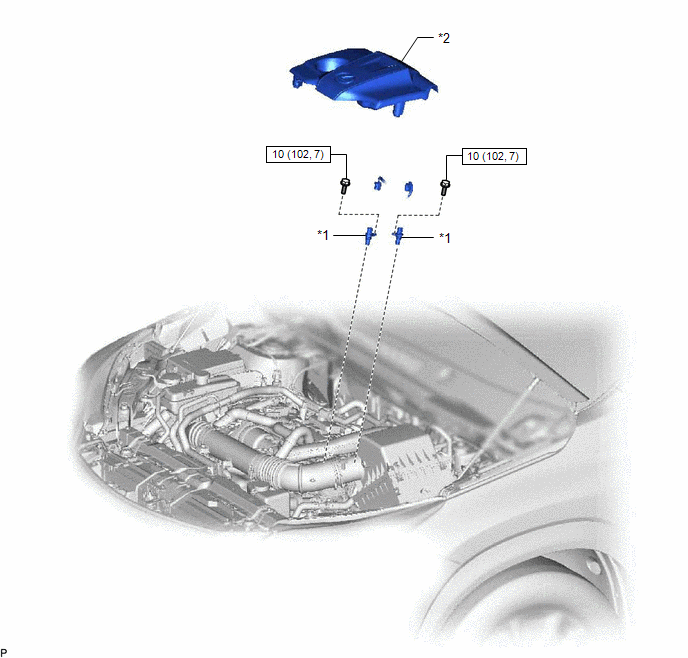

Fig 1: Camshaft Position Sensor Replacement Components With Torque Specifications
GTY511338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CAMSHAFT POSITION SENSOR *2 NO. 1 ENGINE COVER SUB-ASSEMBLY
N.m (kgf/cm, ft.lbf): Specified torque - -
