Components [10/2014 - ]

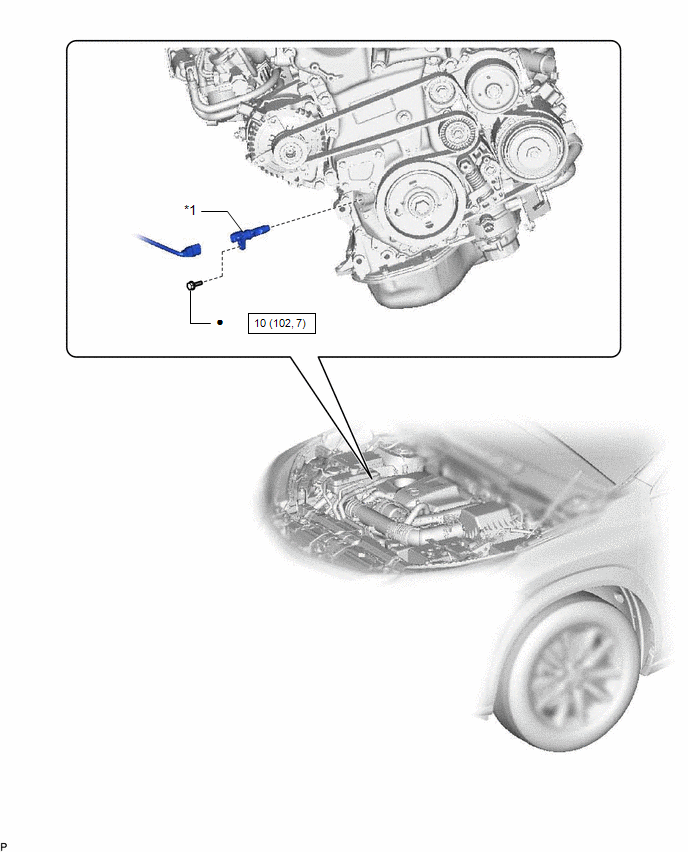

Fig 1: Crankshaft Position Sensor Replacement Components With Torque Specifications
GTY514734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CRANKSHAFT POSITION SENSOR - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
* Precoated part - -
