Components [10/2014 - ]

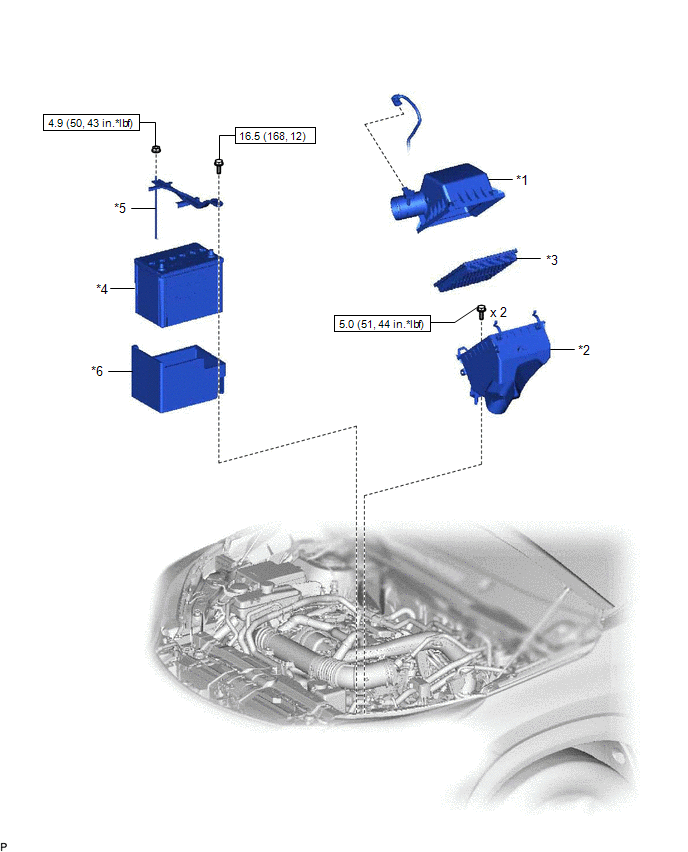

Fig 1: ECM Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	AIR CLEANER CAP SUB-ASSEMBLY	*2	AIR CLEANER CASE SUB-ASSEMBLY
*3	AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY	*4	BATTERY
*5	BATTERY CLAMP SUB-ASSEMBLY	*6	BATTERY INSULATOR
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

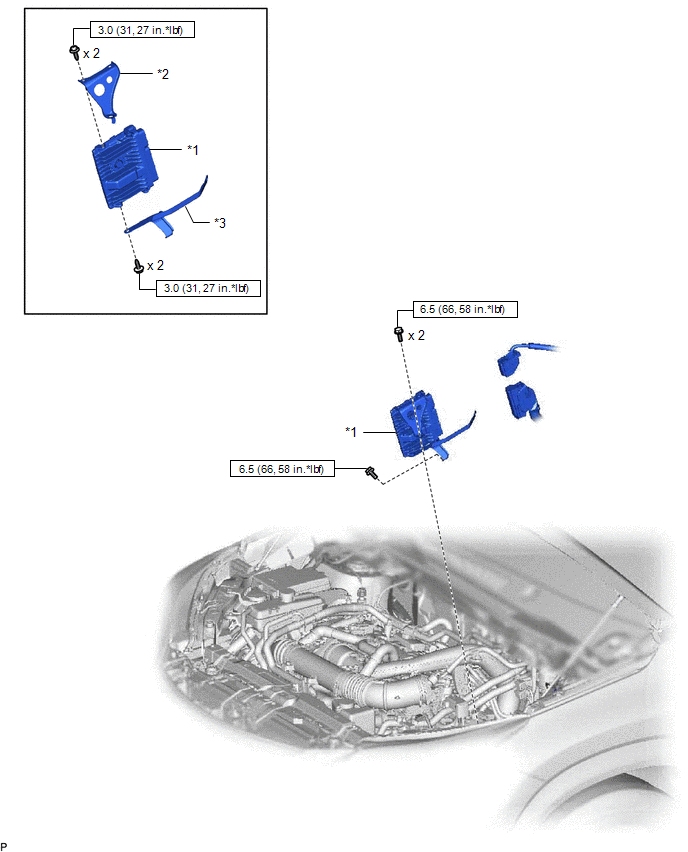

Fig 2: ECM Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	ECM	*2	NO. 1 ECM BRACKET
*3	NO. 2 ECM BRACKET	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
