Installation [05/2019 - ]: Procedure

1. Install the No. 2 ECM bracket to the ECM with the 2 screws.

   Torque: 3.0 N.m (31 kgf/cm, 27 in.lbf)

1. Install the No. 1 ECM bracket to the ECM with the 2 screws.

   Torque: 3.0 N.m (31 kgf/cm, 27 in.lbf)

1. Install the ECM with the 3 bolts.

   Torque: 6.5 N.m (66 kgf/cm, 58 in.lbf)

   NOTE:

   Replace with a new part if it is dropped or if it receives a strong impact.

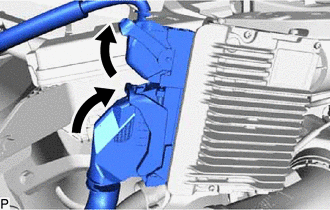

2. Connect the 2 ECM connectors and lock with the 2 levers.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   • When connecting a connector, make sure that dirt, water and other foreign matter is not stuck between the connector and ECM.
   • Make sure that the 2 levers are securely lowered.

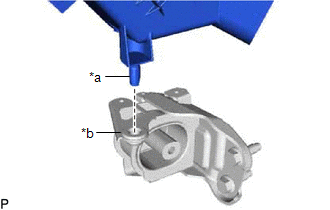

1. Insert the pin of the air cleaner case sub-assembly to the grommet of the engine mounting insulator LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Pin
   *b	Grommet

2. Install the air cleaner case sub-assembly with the 2 bolts.

   Torque: 5.0 N.m (51 kgf/cm, 44 in.lbf)

3. Attach the 3 wire harness clamps to connect the wire harness to the air cleaner case assembly.

1. Install the air cleaner filter element sub-assembly.

1. Attach the 2 clips to install the air cleaner cap sub-assembly.
2. Tighten the hose clamp to secure the air cleaner cap sub-assembly.
3. Attach the wire harness clamp to connect the wire harness to the air cleaner cap sub-assembly.
4. Connect the intake mass air flow meter sub-assembly connector.

Refer to PROCEDURE - Step 5

Refer to PROCEDURE - Step 6

Refer to PROCEDURE - Step 7

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Refer to AUTOMATIC LEARNING CHART [05/2019 - ]

Refer to WORK PROCEDURE [05/2019 - 10/2019] , or refer to WORK PROCEDURE [10/2019 - 07/2020] , or refer to WORK PROCEDURE [07/2020 - ]
