Components [10/2014 - ]

Fig 1: Engine Coolant Temperature Sensor Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	AIR CLEANER CAP SUB-ASSEMBLY	*2	AIR CLEANER CASE SUB-ASSEMBLY
*3	AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY	*4	BATTERY
*5	BATTERY CLAMP SUB-ASSEMBLY	*6	BATTERY INSULATOR
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

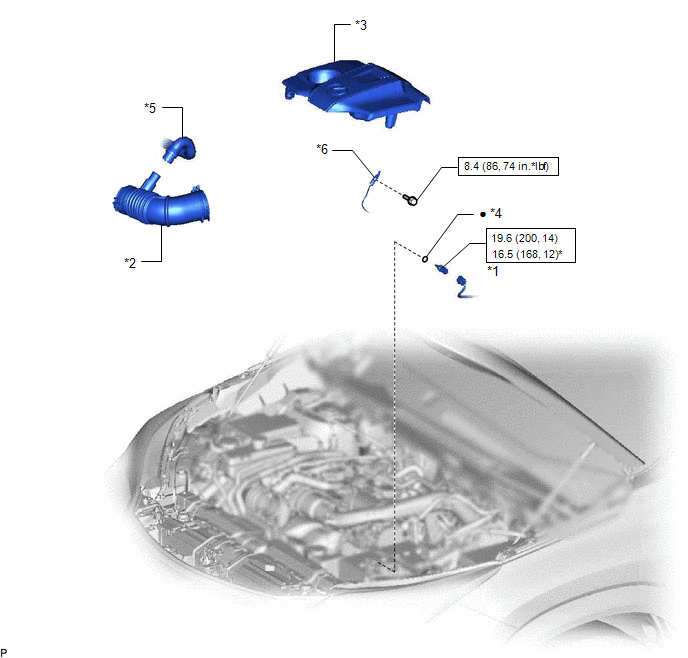

Fig 2: Engine Coolant Temperature Sensor Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	ENGINE COOLANT TEMPERATURE SENSOR	*2	NO. 1 AIR CLEANER HOSE
*3	NO. 1 ENGINE COVER SUB-ASSEMBLY	*4	GASKET
*5	PCV HOSE	*6	GROUND WIRE
	N.m (kgf/cm, ft.lbf): Specified torque	*	For use with union nut wrench
•	Non-reusable part	-	-
