Components [10/2014 - ]

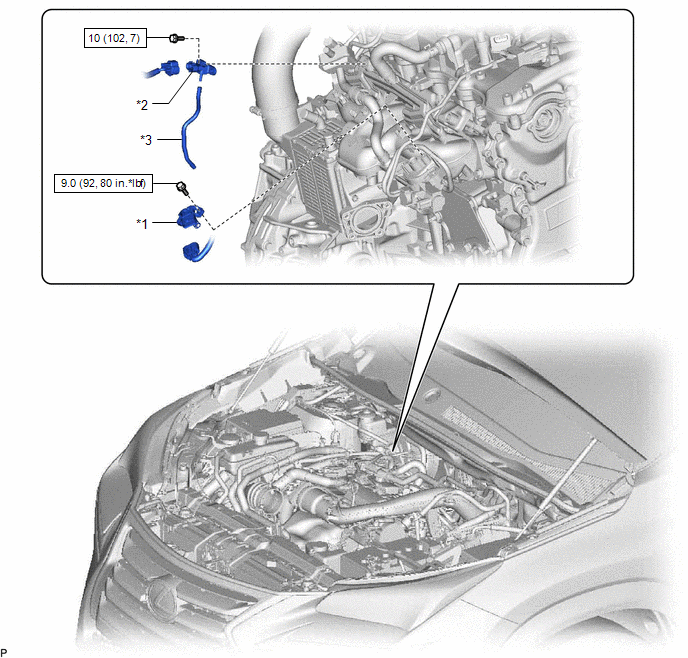

Fig 1: Manifold Absolute Pressure Sensor Replacement Components With Torque Specifications
GTY503320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 1 TURBO PRESSURE SENSOR *2 NO. 2 TURBO PRESSURE SENSOR
*3 VACUUM HOSE - -
N.m (kgf/cm, ft.lbf): Specified torque - -
