Inspection [10/2014 - ]: Procedure

  1. INSPECT NO. 1 TURBO PRESSURE SENSOR
    1. Measure the resistance according to the value(s) in the table below.

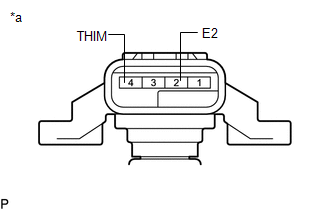

      GTY513109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (No. 1 Turbo Pressure Sensor)

      Standard Resistance

      Tester Connection Condition Specified Condition
      4 (THIM) - 2 (E2) 20°C (68°F) 2.09 to 2.81 kΩ

      If the result is not as specified, replace the No. 1 turbo pressure sensor.
