Installation [10/2014 - ]: Procedure

  1. INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY (VSC OFF SWITCH)

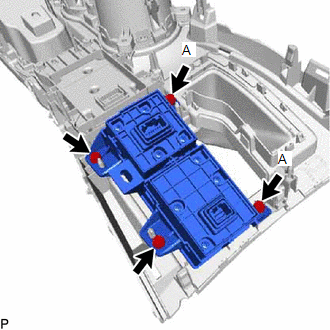

    1. Install the integration control and panel assembly (VSC OFF switch) to the upper rear console panel sub-assembly with the 2 screws.
      GTY509739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      The locations labeled A in the illustration are tightened together with the shift position indicator.

  2. INSTALL SHIFT POSITION INDICATOR

    Refer to PROCEDURE - Step 1 [10/2014 - ]

  3. INSTALL UPPER REAR CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7 [10/2014 - 09/2017] , or refer to PROCEDURE - Step 7 [09/2017 - ]

  4. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8 [10/2014 - 09/2017] , or refer to PROCEDURE - Step 8 [09/2017 - ]

  5. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 15 [10/2014 - 09/2017] , or refer to PROCEDURE - Step 14 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 14 [05/2019 - ]

  6. INSTALL NO. 2 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 16 [10/2014 - 09/2017] , or refer to PROCEDURE - Step 17 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 17 [05/2019 - ]

  7. INSTALL INSTRUMENT SIDE PANEL RH

    Refer to PROCEDURE - Step 17 [10/2014 - 09/2017] , or refer to PROCEDURE - Step 18 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 18 [05/2019 - ]

  8. INSTALL NO. 1 SWITCH HOLE BASE

    Refer to PROCEDURE - Step 18 [10/2014 - 09/2017] , or refer to PROCEDURE - Step 19 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 19 [05/2019 - ]

  9. INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 19 [10/2014 - 09/2017] , or refer to PROCEDURE - Step 20 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 20 [05/2019 - ]

  10. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 20 [10/2014 - 09/2017] , or refer to PROCEDURE - Step 21 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 21 [05/2019 - ]

  11. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 21 , or refer to PROCEDURE - Step 22 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 22 [05/2019 - ]

  12. INSTALL INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 22 [10/2014 - 09/2017] , or refer to PROCEDURE - Step 23 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 23 [05/2019 - ]

  13. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH

    Refer to PROCEDURE - Step 23 [10/2014 - 09/2017] , or refer to PROCEDURE - Step 24 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 24 [05/2019 - ]

  14. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH

    Refer to PROCEDURE - Step 24 [10/2014 - 09/2017] , or refer to PROCEDURE - Step 25 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 25 [05/2019 - ]

  15. INSTALL UPPER REAR CONSOLE PANEL

    Refer to PROCEDURE - Step 25 [10/2014 - 09/2017] , or refer to PROCEDURE - Step 26 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 26 [05/2019 - ]

  16. INSTALL CONSOLE ARMREST ASSEMBLY

    Refer to PROCEDURE - Step 26 [10/2014 - 09/2017] , or refer to PROCEDURE - Step 27 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 27 [05/2019 - ]
