Components [10/2014 - 07/2020]

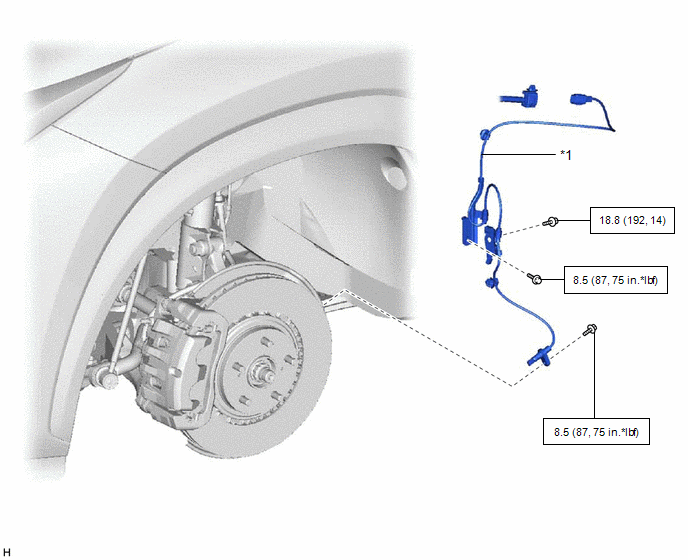

Fig 1: Front Speed Sensor Replacement Components With Torque Specifications
GTY501407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT SPEED SENSOR LH - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
