Installation [07/2020 - ]: Procedure

1. Install the sensor clamp as follows.

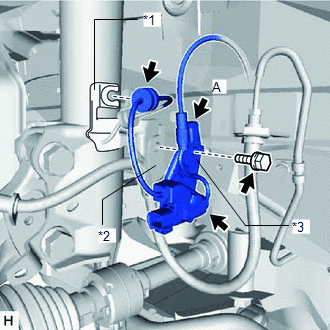

   1. Install the grommet to the absorber bracket.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *1	Absorber Bracket
      *2	Flexible Hose Clamp
      *3	Skid Control Sensor Clamp

   2. Attach hook A of the sensor clamp to the absorber bracket.
      NOTE:

      Do not twist the wire harness for the sensor clamp when installing it.

   3. Install the flexible hose clamp together with the skid control sensor clamp to the absorber bracket with the bolt.

      Torque: 18.8 N*m (192 kgf*cm, 14 ft.*lbf)

   4. Install the grommet to the absorber bracket.
   5. Connect the connector to the absorber control actuator.
2. Install the sensor clamp to the side member with the bolt.

   Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

   NOTE:

   Do not twist the wire harness for the sensor clamp when installing it.

3. Install the clamp.
4. Fold back the fender liner and connect the connector.

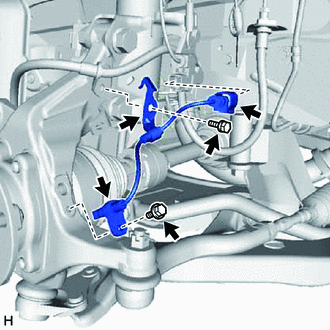

1. Install the flexible hose clamp together with the sensor clamp with the bolt.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 18.8 N*m (192 kgf*cm, 14 ft.*lbf)

   NOTE:

   Do not twist the wire harness for the sensor clamp when installing it.

2. Install the front speed sensor LH to the steering knuckle with the bolt.

   Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

   NOTE:

   • Prevent foreign matter from attaching to the front speed sensor tip.
   • Firmly insert the front speed sensor body into the steering knuckle before tightening the bolt.
3. Connect the connector.

1. Install the front speed sensor LH to the steering knuckle with the bolt.

   Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

   NOTE:

   • Prevent foreign matter from attaching to the front speed sensor tip.
   • Firmly insert the front speed sensor body into the steering knuckle before tightening the bolt.
2. Install the sensor clamp as follows.

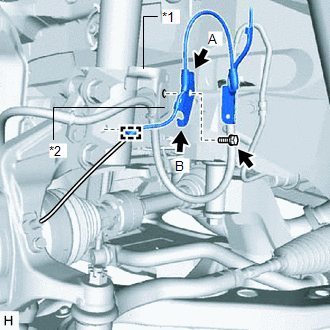

   1. Attach hook A and B of the sensor clamp to the flexible hose bracket.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *1	Absorber Bracket
      *2	Flexible Hose Clamp

      NOTE:

      Do not twist the wire harness for the sensor clamp when installing it.

   2. Install the flexible hose clamp together with the sensor clamp to the absorber bracket with the bolt.

      Torque: 18.8 N*m (192 kgf*cm, 14 ft.*lbf)

   3. Install the clamp to the absorber bracket.
3. Install the sensor clamp to the side member with the bolt.

   Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

   NOTE:

   Do not twist the wire harness for the sensor clamp when installing it.

4. Install the clamp.
5. Fold back the fender liner and connect the connector.
