Removal [07/2020 - ]: Procedure

  1. REMOVE FRONT TIRE

    Refer to PROCEDURE - Step 1

  2. REMOVE FRONT SPEED SENSOR LH (w/ AVS)
    1. Disconnect the connector.
      GTY519815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and sensor clamp from the steering knuckle.
    3. Remove the bolt and front speed sensor LH from the steering knuckle.
      NOTE:

      Prevent foreign matter from attaching to the front speed sensor LH tip.

  3. REMOVE FRONT SKID CONTROL SENSOR WIRE LH (w/ AVS)

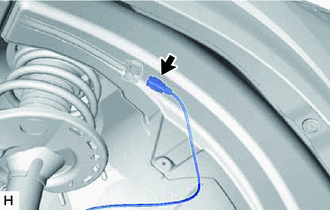

    1. Fold back the fender liner and disconnect the connector.
      GTY511635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the clamp.

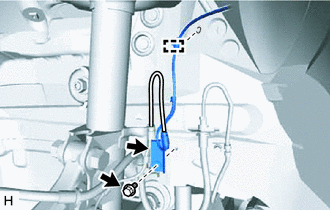

      GTY511636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the bolt and sensor clamp from the side member.
    4. Disconnect the connector from the absorber control actuator.

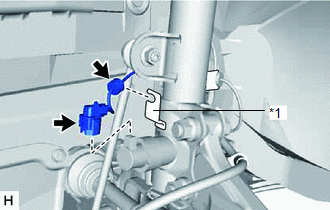

      GTY506563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Absorber Bracket
    5. Remove the grommet from the absorber bracket.
    6. Remove the bolt, hook and sensor clamp.

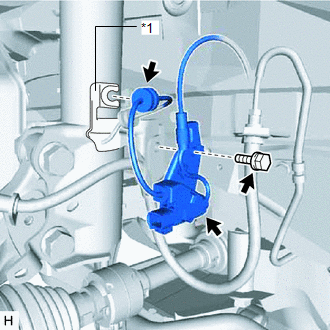

      GTY514095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Absorber Bracket
    7. Remove the grommet from the absorber bracket.
  4. REMOVE FRONT SPEED SENSOR LH (w/o AVS)
    1. Fold back the fender liner and disconnect the connector.
      GTY511635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the clamp.
      GTY511636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the bolt and sensor clamp from the side member.
    4. Remove the clamp.

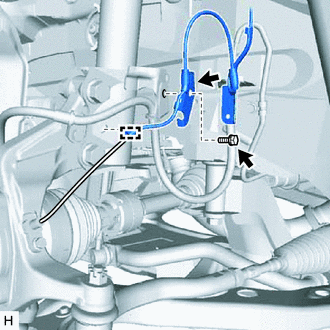

      GTY511637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the bolt and sensor clamp from the absorber bracket.

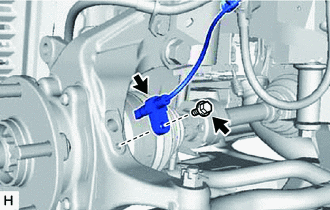

    6. Remove the bolt and front speed sensor LH from the steering knuckle.
      GTY511638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Prevent foreign matter from attaching to the front speed sensor LH tip.
