Removal [10/2014 - ]: Procedure

  1. DISCONNECT WIRE HARNESS

    Refer to PROCEDURE - Step 4 [10/2014 - 09/2016], or refer to PROCEDURE - Step 4 [09/2016 - ]

  2. REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR

    Refer to PROCEDURE - Step 4

  3. DISCONNECT INVERTER RESERVE TANK ASSEMBLY

    Refer to PROCEDURE - Step 7 [10/2014 - 09/2016], or refer to PROCEDURE - Step 7 [09/2016 - ]

  4. REMOVE AIR FUEL RATIO SENSOR

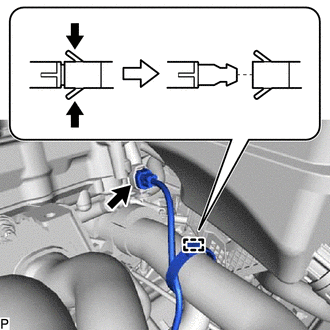

    1. Remove the radiator hose clamp as shown in the illustration.
      GTY521058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Push
    2. Disconnect the air fuel ratio sensor connector.

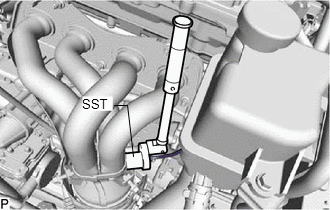

    3. Using SST, remove the air fuel ratio sensor from the exhaust manifold.
      • SST: 09224-00011
      GTY502803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
