Components [10/2014 - ]

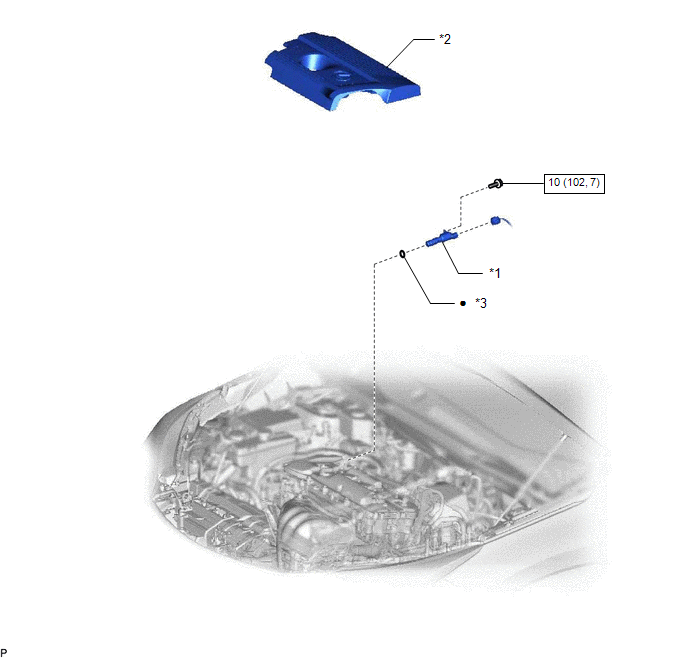

Fig 1: Camshaft Oil Control Valve Replacement Components With Torque Specifications
GTY510831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY *2 NO. 1 ENGINE COVER SUB-ASSEMBLY
*3 O-RING - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
