Removal [10/2014 - ]: Procedure

Refer to PROCEDURE - Step 21 [10/2014 - 09/2016], or refer to PROCEDURE - Step 21 [09/2016 - 05/2019], or refer to PROCEDURE - Step 21 [05/2019 - ]

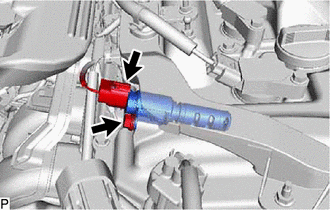

1. Disconnect the camshaft timing oil control valve assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the bolt and camshaft timing oil control valve assembly from the cylinder head cover sub-assembly.
   NOTE:

   Replace with a new part if it is dropped or if it receives a strong impact.

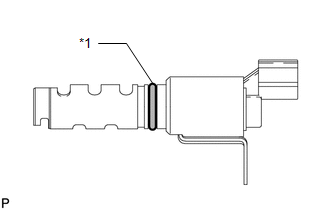

3. Remove the O-ring from the camshaft timing oil control valve assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1

   O-Ring

   HINT:

   An O-ring is already installed in a new camshaft timing oil control valve assembly. So, the O-ring does not need to be removed when the assembly is replaced with a new one.
