Removal [10/2014 - ]: Procedure

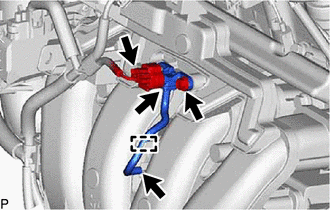

  1. REMOVE MANIFOLD ABSOLUTE PRESSURE SENSOR
    1. Disconnect the manifold absolute pressure sensor connector.
      GTY512111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the clamp and disconnect the vacuum hose from the intake manifold.
    3. Remove the bolt and manifold absolute pressure sensor.
    4. Remove the manifold absolute pressure sensor from the vacuum hose.
