On-Vehicle Inspection [10/2014 - ]: Procedure

  1. INSPECT JUNCTION BLOCK

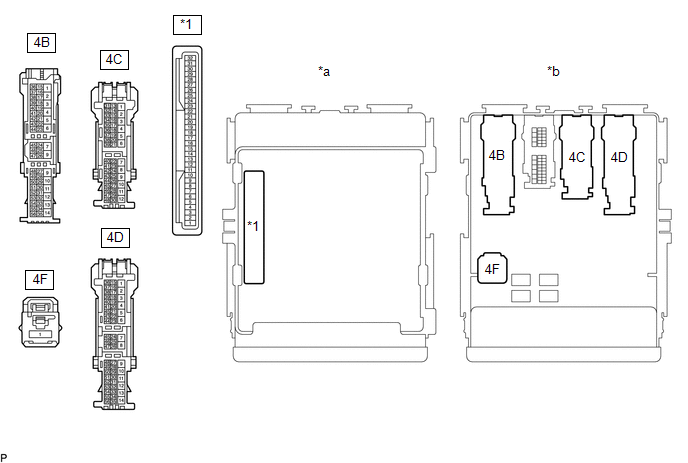

    GTY501775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *1 Main Body ECU - -
    *a Component without harness connected
    (Junction Block)    		 *b Component without main body ECU connected
    (Junction Block)
    NOTE:

    Before performing the relay inspections for the relays of the junction block, inspect the ECU-IG NO. 2, ECU-IG NO. 4 and ECU-IG NO. 5 fuses.

    1. Inspect the IG1 NO. 1 relay.
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        4F-1 - 4C-21 Battery voltage not applied to terminals 4B-46 and -4D-28 10 kΩ or higher
        Battery voltage applied to terminals 4B-46 and 4D-28 Below 1 Ω

        If the result is not as specified, replace the junction block.

    2. Inspect the IG1 NO. 2 relay.
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        4F-1 - 4C-41 Battery voltage not applied to terminals 4B-46 and -4D-28 10 kΩ or higher
        Battery voltage applied to terminals 4B-46 and 4D-28 Below 1 Ω

        If the result is not as specified, replace the junction block.

    3. Inspect the IG1 NO. 3 relay.
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        4F-1 - 4D-34 Battery voltage not applied to terminals 4B-46 and -4D-28 10 kΩ or higher
        Battery voltage applied to terminals 4B-46 and 4D-28 Below 1 Ω

        If the result is not as specified, replace the junction block.

  2. INSPECT EFI MAIN RELAY (EFI MAIN)

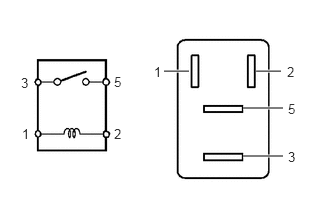

    GTY373106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      3 - 5 Battery voltage not applied to terminals 1 and 2 10 kΩ or higher
      Battery voltage applied to terminals 1 and 2 Below 1 Ω

      If the result is not as specified, replace the EFI main relay.

  3. INSPECT EFI MAIN NO. 2 RELAY (EFI MAIN NO. 2)
    GTY373106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      3 - 5 Battery voltage not applied to terminals 1 and 2 10 kΩ or higher
      Battery voltage applied to terminals 1 and 2 Below 1 Ω

      If the result is not as specified, replace the EFI main No. 2 relay.

  4. INSPECT IGNITION NO. 2 MAIN RELAY (IG2-MAIN)
    GTY373106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      3 - 5 Battery voltage not applied to terminals 1 and 2 10 kΩ or higher
      Battery voltage applied to terminals 1 and 2 Below 1 Ω

      If the result is not as specified, replace the ignition No. 2 main relay.
