Removal [10/2014 - ]: Procedure

DRAIN ENGINE COOLANT
Refer to PROCEDURE - Step 1
REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 21 [10/2014 - 09/2016], or refer to PROCEDURE - Step 21 [09/2016 - 05/2019], or refer to PROCEDURE - Step 21 [05/2019 - ]

REMOVE AIR CLEANER CAP AND HOSE

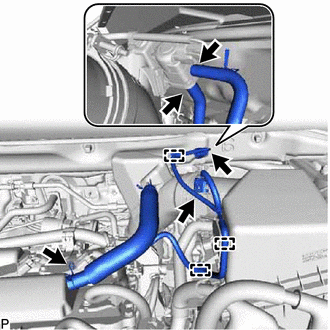

Disconnect the mass air flow meter sub-assembly connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Slide the clamp and disconnect the ventilation hose assembly from the cylinder head cover sub-assembly.
Disconnect the purge valve connector.
Slide the 2 clamps and disconnect the fuel vapor feed hose and No. 2 fuel vapor feed hose from the purge valve.
Detach the 3 wire harness clamps.

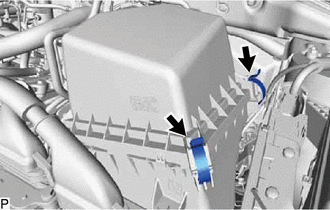

Detach the 2 clamps and remove the air cleaner cap sub-assembly from the air cleaner case.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

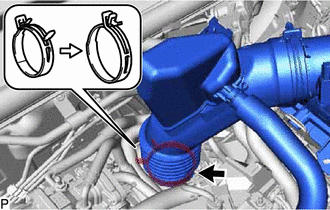

Lock the hose clamp and disconnect the air cleaner cap and hose from the throttle with motor body assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE THROTTLE WITH MOTOR BODY ASSEMBLY

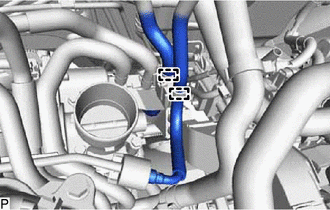

Disconnect the fuel tube sub-assembly and No. 2 fuel vapor feed hose from the fuel hose clamp.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disconnect the throttle with motor body assembly connector.

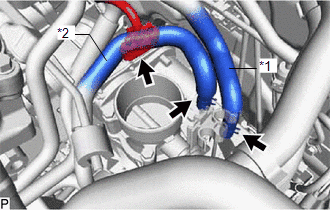

*1	No. 2 Water By-pass Hose
*2	No. 3 Water By-pass Hose

Slide the 2 clamps and disconnect the No. 2 water by-pass hose and No. 3 water by-pass hose from the throttle with motor body assembly.

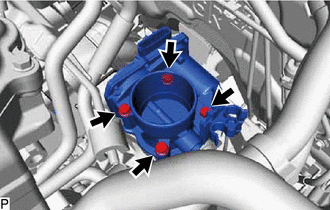

Remove the 4 bolts, fuel hose bracket and throttle with motor body assembly.

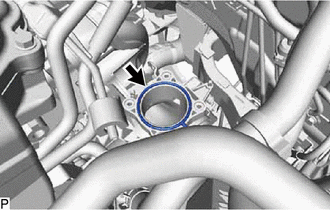

Remove the gasket from the intake manifold.
