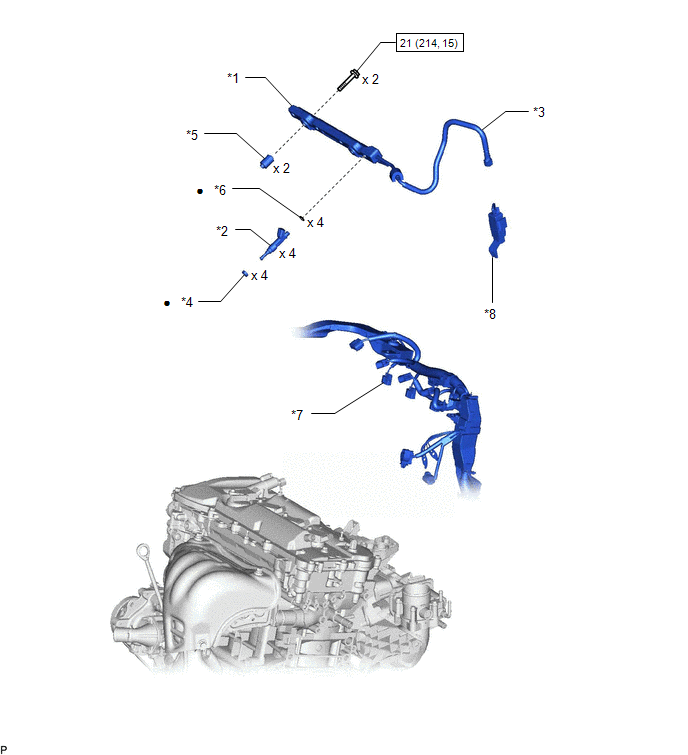

Components [10/2014 - ]
| Callout | Description | Callout | Description |
| *1 | FUEL DELIVERY PIPE | *2 | FUEL INJECTOR ASSEMBLY |
| *3 | FUEL TUBE SUB-ASSEMBLY | *4 | INJECTOR VIBRATION INSULATOR |
| *5 | FUEL DELIVERY PIPE SPACER | *6 | O-RING |
| *7 | FUEL INJECTOR ASSEMBLY CONNECTOR | *8 | NO. 1 FUEL PIPE CLAMP |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
