DTC P0607: Control Module Performance [10/2014 - ]: Procedure

  1. CHECK FOR ANY OTHER DTCS OUTPUT
    1. Connect the Techstream to the DLC3.
    2. Turn the power switch on (IG).
    3. Turn the Techstream on.
    4. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
    5. Read the DTCs.

      Powertrain > Engine and ECT > Trouble Codes

      Result

      Result Proceed to
      DTC P0607 and P0136, P0137 or P0138 are output A
      DTC P0607 is output B

    Result:

    B

    See step  3

    Result:

    A

    See step  2

  2. INSPECT DTC (P0136, P0137 OR P0138)
    1. Refer to the P0136, P0137 or P0138 flowchart.

      HINT:

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  6

  3. CHECK FOR EXHAUST GAS LEAK
    1. Connect the Techstream to the DLC3.
    2. Turn the power switch on (IG) and turn the Techstream on.
    3. Put the engine in inspection mode (maintenance mode).

      Refer to INSPECTION MODE PROCEDURE [10/2014 - ]

      Powertrain > Hybrid Control > Utility

      Tester Display
      Inspection Mode
    4. Start the engine.
    5. Allow the engine to idle and then rev the engine.
    6. Check for exhaust gas leaks around the heated oxygen sensor.

      If any exhaust gas leaks are present, repair them and proceed to "Perform Confirmation Driving Pattern". If no exhaust gas leaks are present, proceed to "Perform Confirmation Driving Pattern".

      HINT:

      • If no exhaust gas leaks are present, there may be a malfunction in the heated oxygen sensor circuit.
      • If any exhaust gas leaks are present around the heated oxygen sensor, noise appears in the output voltage of the heated oxygen sensor.
      • Perform "Inspection After Repair" after repairing or replacing the exhaust system.

        Refer to INITIALIZATION [10/2014 - ]

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  4

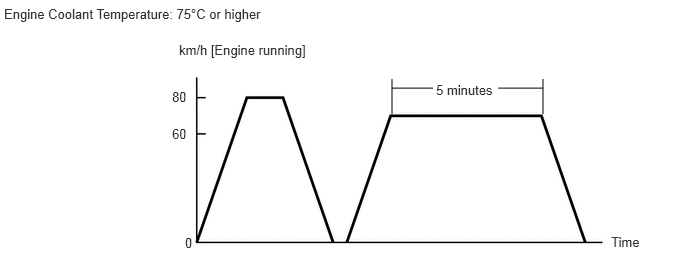

  4. PERFORM CONFIRMATION DRIVING PATTERN
    GTY517705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Connect the Techstream to the DLC3.
    2. Turn the power switch on (IG).
    3. Turn the Techstream on.
    4. Clear the DTCs.

      Refer to DTC CHECK / CLEAR [10/2014 - 05/2019] , or refer to DTC CHECK / CLEAR [05/2019 - ]

      Powertrain > Engine and ECT > Clear DTCs

    5. Turn the power switch off and wait for at least 30 seconds.
    6. Turn the power switch on (IG) and turn the Techstream on.
    7. Put the engine in inspection mode (maintenance mode).

      Refer to INSPECTION MODE PROCEDURE [10/2014 - ]

      Powertrain > Hybrid Control > Utility

      Tester Display
      Inspection Mode
    8. Start the engine.
    9. Warm up the engine until the engine coolant temperature becomes 75°C (167°F) or higher.
    10. Perform the driving pattern.
      WARNING:

      When performing the confirmation driving pattern, obey all speed limits and traffic laws.

      HINT:

      If the engine stops, further depress the accelerator pedal to restart the engine.

      1. With the engine running, accelerate the vehicle until 80 km/h (50 mph) and stop the vehicle.
      2. With the engine running, drive the vehicle between 60 to 80 km/h (37 to 50 mph) for 5 minutes.
    11. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
    12. Read the DTCs.

      Powertrain > Engine and ECT > Trouble Codes

      Result

      Result Proceed to
      DTC P0607 and P0136, P0137 or P0138 are output A
      DTC P0607 is output B
      DTCs are not output C

    Result:

    B

    REPLACE ECM. Refer to  REMOVAL [10/2014 - ]

    Result:

    C

    See step  6

    Result:

    A

    See step  5

  5. INSPECT DTC (P0136, P0137 OR P0138)
    1. Refer to the P0136, P0137 or P0138 flowchart.

      HINT:

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  6

  6. INSPECT ECM
    1. Clear the DTCs.

      Refer to DTC CHECK / CLEAR [10/2014 - 05/2019] , or refer to DTC CHECK / CLEAR [05/2019 - ]

      Powertrain > Engine and ECT > Clear DTCs

    2. Stop the engine and wait for 30 minutes.
    3. Turn the power switch on (IG) and turn the Techstream on.
    4. Put the engine in inspection mode (maintenance mode).

      Refer to INSPECTION MODE PROCEDURE [10/2014 - ]

      Powertrain > Hybrid Control > Utility

      Tester Display
      Inspection Mode
    5. Start the engine and allow it to idle for 2 minutes.
    6. Turn the Techstream on.
    7. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
    8. Read the DTCs.

      Powertrain > Engine and ECT > Trouble Codes

      Result

      Result Proceed to
      DTCs are not output A
      DTC P0607 is output B

    Result:

    A

    END

    Result:

    B

    REPLACE ECM. Refer to  REMOVAL [10/2014 - ]
