Components [10/2014 - 09/2017]

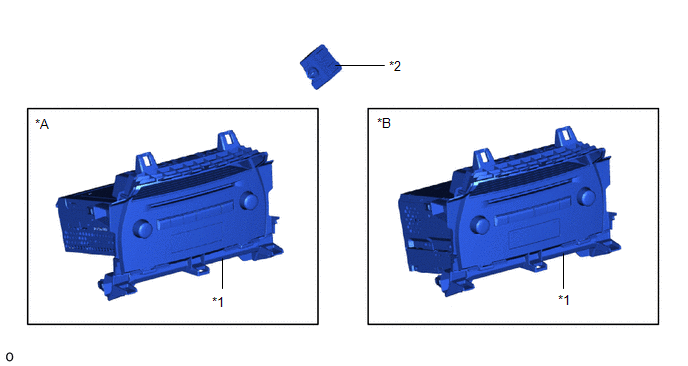

Fig 1: Pre-Collision System Warning Buzzer Replacement Components
GTY511016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A w/o Navigation System *B w/ Navigation System
*1 RADIO RECEIVER ASSEMBLY *2 SKID CONTROL BUZZER ASSEMBLY (PRE-COLLISION SYSTEM WARNING BUZZER)
