Components [11/2017 - ]

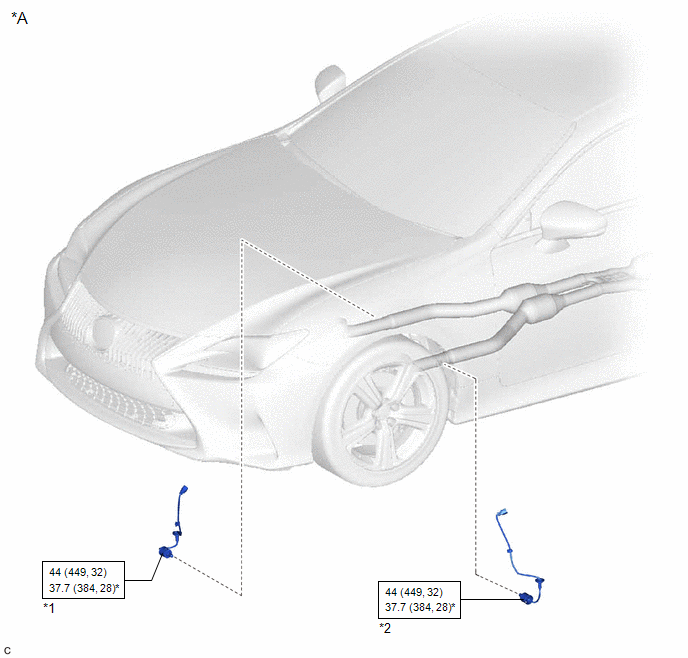

Fig 1: Heated Oxygen Sensor Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for 2WD	-	-
*1	HEATED OXYGEN SENSOR (for Bank 1)	*2	HEATED OXYGEN SENSOR (for Bank 2)
	N.m (kgf/cm, ft.lbf): Specified torque	*	For use with SST

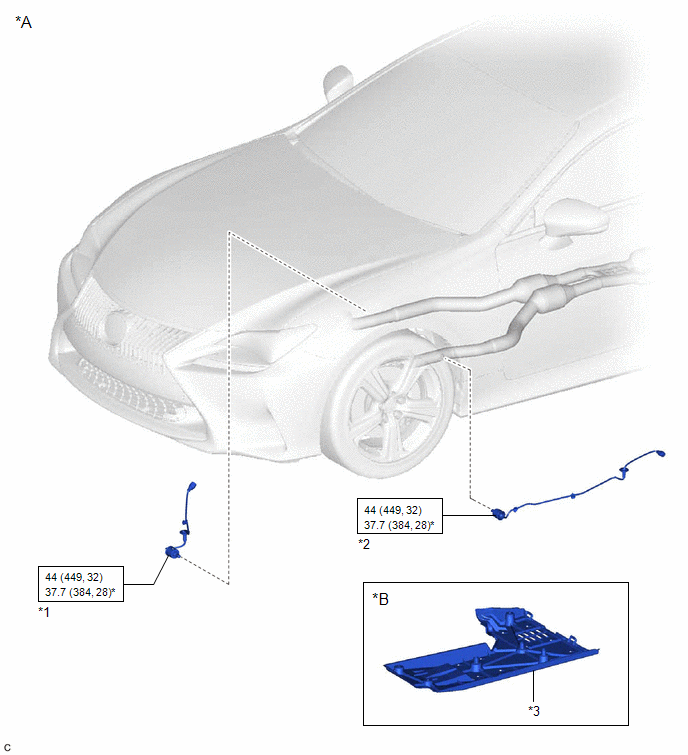

Fig 2: Heated Oxygen Sensor Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*A	for AWD	*B	w/ Front Floor Cover LH
*1	HEATED OXYGEN SENSOR (for Bank 1)	*2	HEATED OXYGEN SENSOR (for Bank 2)
*3	FRONT FLOOR COVER LH	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	*	For use with SST
