Reassembly [09/2014 - 11/2017]: Procedure

  1. INSTALL FRONT ESCUTCHEON

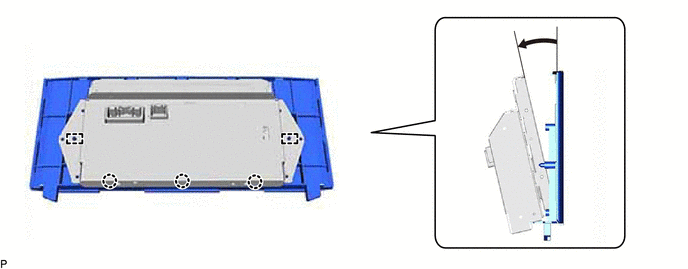

    1. Engage the 3 claws and 2 guides as shown in the illustration.
      GTY646164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

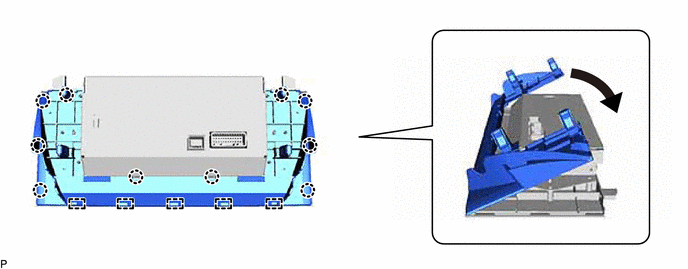

    2. Engage the 5 guides and 10 claws as shown in the illustration.
      GTY646166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

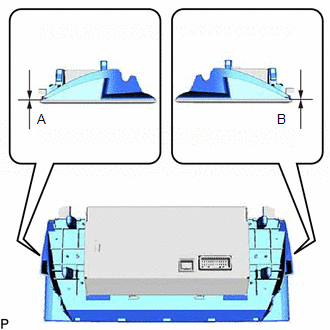

    3. Check that there is no clearance between the front escutcheon and rear escutcheon as shown in the illustration.

      Standard Measurement

      Area Measurement
      A 0 mm (0 in.)
      B 0 mm (0 in.)
      GTY635884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

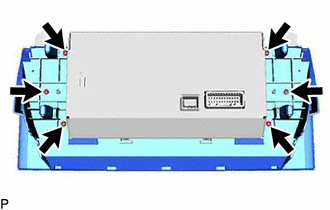

    4. Install the front escutcheon and rear escutcheon with the 6 screws.
      GTY679916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the release paper from a new insulator.

      HINT:

      After removing the release paper, keep the exposed adhesive free from foreign matter.

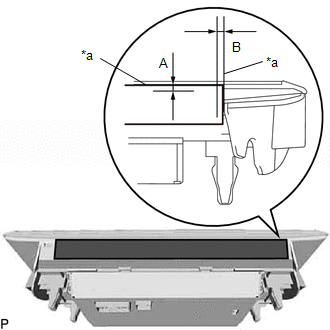

    6. Install the insulator as shown in the illustration.
      GTY614505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Standard Measurement

      Standard Measurement

      Area Measurement
      A 0 to 2.0 mm (0 to 0.0787 in.)
      B 0 to 2.0 mm (0 to 0.0787 in.)
