Components [09/2014 - 11/2017]

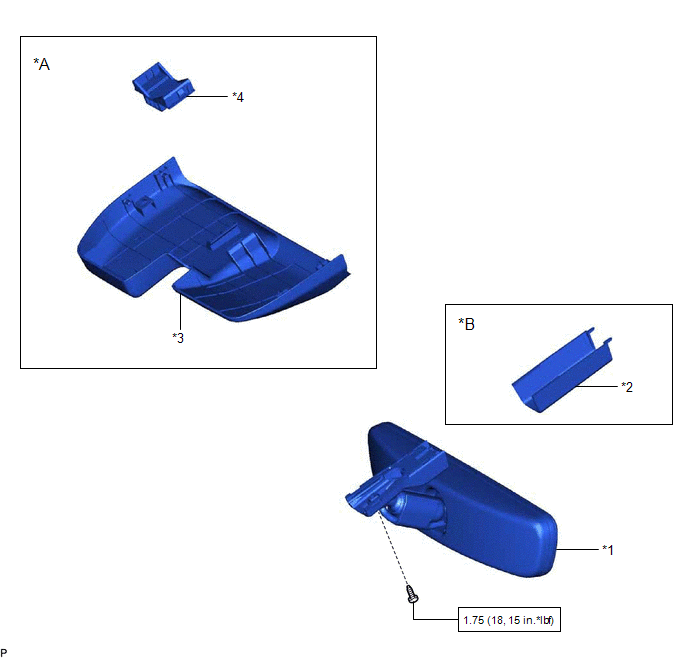

Fig 1: Inner Rear View Mirror Replacement Components With Torque Specifications [09/2014 - 11/2017]
GTY519265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A w/ Lane Departure Alert System *B w/o Lane Departure Alert System
*1 INNER REAR VIEW MIRROR ASSEMBLY *2 INNER REAR VIEW MIRROR STAY HOLDER COVER
*3 NO. 1 LANE RECOGNITION COVER *4 NO. 2 LANE RECOGNITION COVER
N.m (kgf/cm, ft.lbf): Specified torque - -
