Components [09/2014 - ]

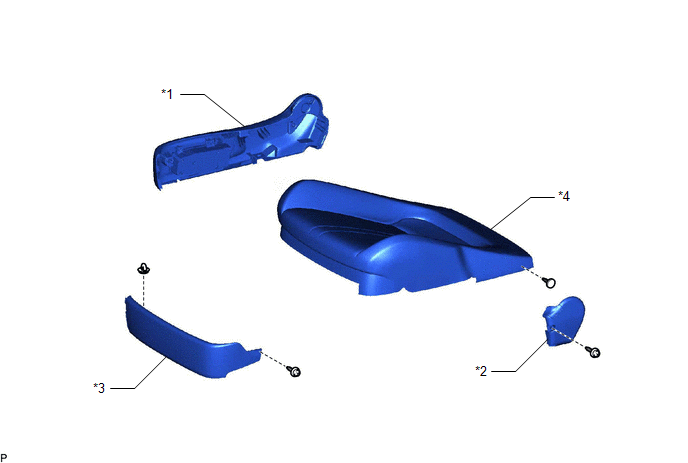

Fig 1: Occupant Detection Sensor Replacement Components
GTY517254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT SEAT CUSHION SHIELD *2 FRONT SEAT INNER CUSHION SHIELD
*3 INNER NO. 1 FRONT SEAT CUSHION SHIELD *4 OCCUPANT DETECTION SENSOR (FRONT SEAT CUSHION PAD WITH COVER)
