Installation [09/2014 - ]: Procedure

INSTALL OCCUPANT DETECTION SENSOR (FRONT SEAT CUSHION PAD WITH COVER)

HINT:

The occupant detection sensor cannot be removed from the front seat cushion pad with cover as they are a unit.

Temporarily install the occupant detection sensor (front seat cushion pad with cover).
NOTE:
Be careful not to damage the front seat cushion pad with cover.

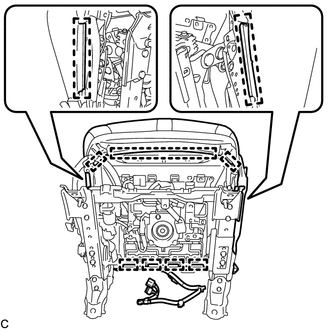

Engage the 9 hooks.

GTY504457

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

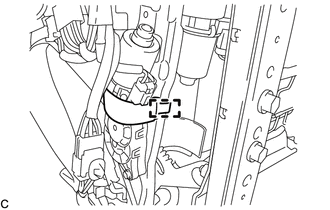

Engage the hook.

GTY504470

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

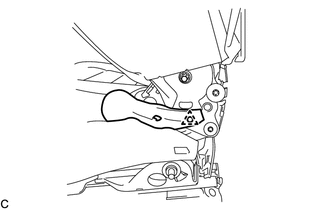

Install the clip.

GTY519030

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Engage the claw to install the connector.

GTY498471

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

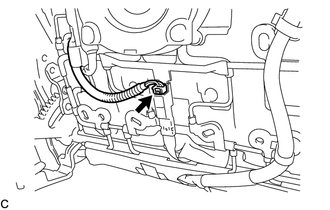

Connect the connector.

GTY498480

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

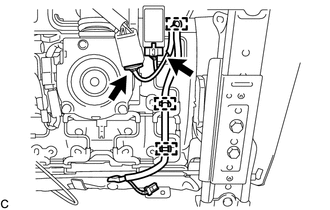

w/ Seat Heater System:

Connect the 2 connectors.

GTY517718

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

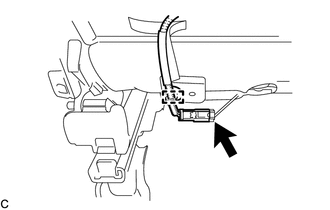

Engage the 3 clamps.

Engage the clamp.

GTY509676

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

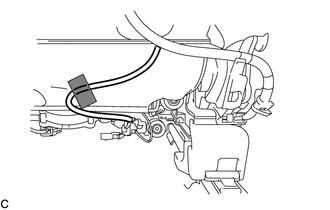

Connect the connector.

Engage the fastener to secure the front seat airbag assembly wire harness.

GTY496666

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fastener

INSTALL FRONT SEAT INNER CUSHION SHIELD
HINT:

Use the same procedure as for the driver seat.

See step 41
INSTALL FRONT SEAT CUSHION SHIELD
HINT:

Use the same procedure as for the driver seat.

See step 42
INSTALL INNER NO. 1 FRONT SEAT CUSHION SHIELD
HINT:

Use the same procedure as for the driver seat.

See step 43
CONNECT FRONT SEATBACK PAD WITH COVER
HINT:

Use the same procedure as for the driver seat

See step 44
INSTALL FRONT SEAT ASSEMBLY
HINT:

Use the same procedure as for the driver seat.

Refer to INSTALLATION [09/2014 - ]
