Components [09/2014 - ]

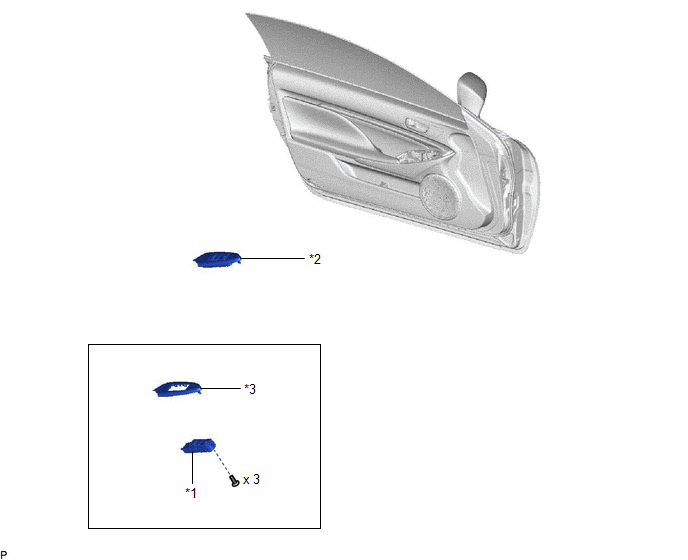

Fig 1: Power Window Master Switch Replacement Components
GTY503436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY *2 MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL
*3 FRONT DOOR ARMREST BASE PANEL - -
