Components [09/2014 - ]

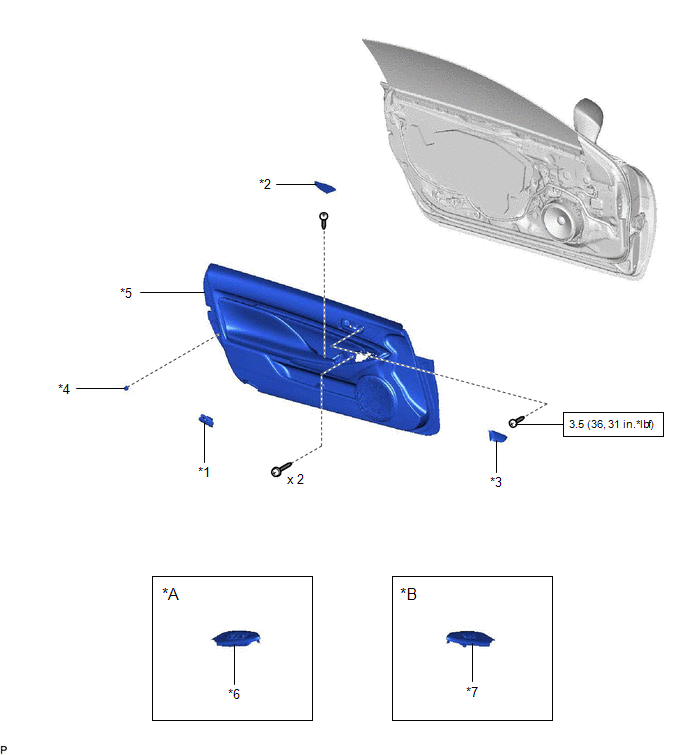

| *A | for Driver Side | *B | for Front Passenger Side |
| *1 | COURTESY LIGHT ASSEMBLY | *2 | DOOR TRIM COVER |
| *3 | FRONT DOOR INSIDE HANDLE BEZEL PLUG | *4 | FRONT DOOR NO. 1 STIFFENER CUSHION |
| *5 | FRONT DOOR TRIM BOARD SUB-ASSEMBLY | *6 | MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL |
| *7 | POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

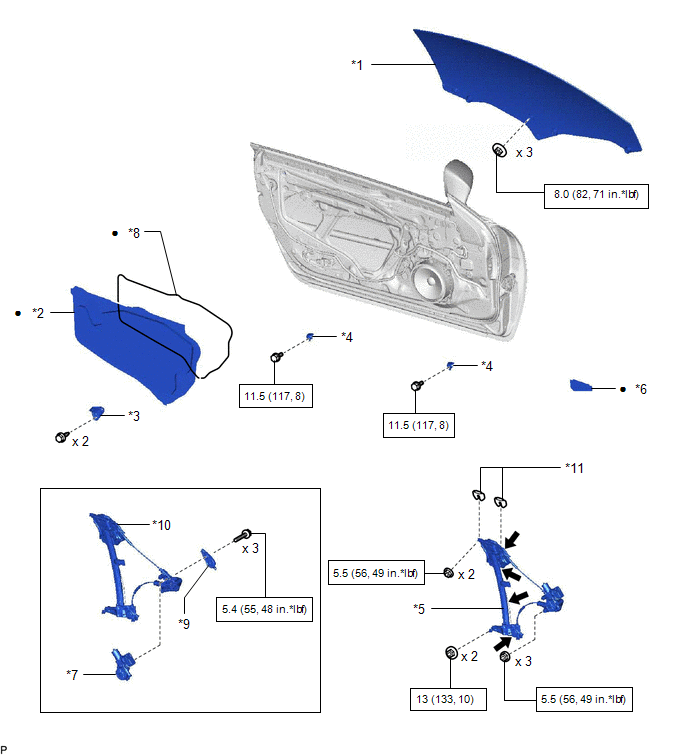

| *1 | FRONT DOOR GLASS SUB-ASSEMBLY | *2 | FRONT DOOR SERVICE HOLE COVER |
| *3 | FRONT DOOR TRIM BRACKET | *4 | FRONT DOOR UPPER WINDOW STOP |
| *5 | FRONT DOOR WINDOW REGULATOR ASSEMBLY | *6 | OUTER MIRROR INSTALL HOLE COVER |
| *7 | POWER WINDOW REGULATOR MOTOR ASSEMBLY | *8 | BUTYL TAPE |
| *9 | HOUSING CAP | *10 | FRONT DOOR WINDOW REGULATOR SUB-ASSEMBLY |
| *11 | WINDOW REGULATOR SHIM | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| MP grease | - | - |
