Inspection [09/2014 - ]: Procedure

  1. INSPECT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH
    1. Connect a positive (+) battery lead to connector terminal 2 (B).

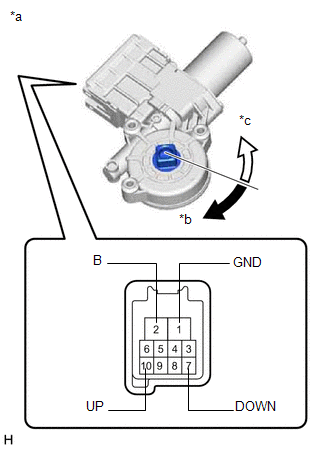

      GTY511775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Power Window Regulator Motor Assembly LH)
      *b clockwise
      *c Counterclockwise
      NOTE:

      Do not connect a positive (+) battery lead to any terminals other than terminal 2 (B) to avoid damaging the pulse sensor inside the motor.

    2. Connect a negative (-) battery lead to connector terminals 1 (GND) and 7 (DOWN) or 10 (UP).
    3. Check that the motor gear rotates smoothly as follows:

      OK

      Measurement Condition Specified Condition
      1. Connect a positive (+) battery lead to terminal 2 (B), connect a negative (-) battery lead to terminal 1 (GND), and keep them connected for 3 seconds or more.
      2. With terminals 2 (B) and 1 (GND) connected, connect a negative (-) battery lead to terminal 10 (UP).
      3. Disconnect and reconnect the negative (-) battery lead for terminal 10 (UP) within 1 second.
      		 Motor gear rotates clockwise
      1. Connect a positive (+) battery lead to terminal 2 (B), connect a negative (-) battery lead to terminal 1 (GND), and keep them connected for 3 seconds or more.
      2. With terminals 2 (B) and 1 (GND) connected, connect a negative (-) battery lead to terminal 7 (DOWN).
      3. Disconnect and reconnect the negative (-) battery lead for terminal 7 (DOWN) within 1 second.
      		 Motor gear rotates counterclockwise
      1. If the result is not as specified, replace the power window regulator motor assembly LH.
      NOTE:

      Initialize the power window control system after installing the power window regulator motor and regulator assembly.

  2. INSPECT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH
    1. Apply positive (+) battery voltage to connector terminal 2 (B).

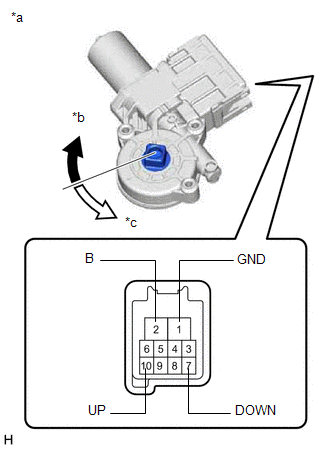

      GTY516451Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Power Window Regulator Motor Assembly RH)
      *b Clockwise
      *c Counterclockwise
      NOTE:

      Do not apply positive (+) battery voltage to any terminals other than terminal 2 (B) to avoid damaging the pulse sensor inside the motor.

    2. Connect a negative (-) battery to connector terminals 1 (GND) and 7 (DOWN) or 10 (UP).
    3. Check that the motor gear rotates smoothly as follows:

      OK

      Measurement Condition Specified Condition
      1. Connect a positive (+) battery lead to terminal 2 (B), connect a negative (-) battery lead to terminal 1 (GND), and keep them connected for 3 seconds or more.
      2. With terminals 2 (B) and 1 (GND) connected, connect a negative (-) battery lead to terminal 10 (UP).
      3. Disconnect and reconnect the negative (-) battery lead for terminal 10 (UP) within 1 second.
      		 Motor gear rotates counterclockwise
      1. Connect a positive (+) battery lead to terminal 2 (B), connect a negative (-) battery lead to terminal 1 (GND), and keep them connected for 3 seconds or more.
      2. With terminals 2 (B) and 1 (GND) connected, connect a negative (-) battery lead to terminal 7 (DOWN).
      3. Disconnect and reconnect the negative (-) battery lead for terminal 7 (DOWN) within 1 second.
      		 Motor gear rotates clockwise
      1. If the result is not as specified, replace the power window regulator motor assembly RH.
      NOTE:

      Initialize the power window control system after installing the power window regulator motor and regulator assembly.
