Components [09/2014 - 01/2023]

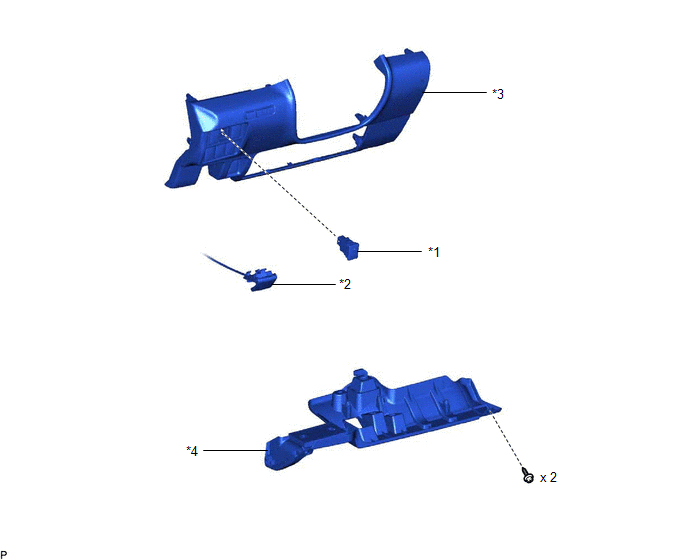

Fig 1: Windshield Deicer Switch Replacement Components [09/2014 - 01/2023]
GTY512275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT WIPER DEICER SWITCH *2 HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
*3 LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY *4 NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
