Components [11/2017 - 01/2023]
Fig 1: Brake Actuator Replacement Components With Torque Specifications [11/2017 - 01/2023] (1 Of 5)
| *1 | FRONT UPPER SUSPENSION TO COWL BRACE LH | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
Fig 2: Brake Actuator Replacement Components With Torque Specifications [11/2017 - 01/2023] (2 Of 5)
| *1 | NO. 3 ENGINE ROOM RELAY BLOCK ASSEMBLY | *2 | WIRING HARNESS CLAMP BRACKET |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

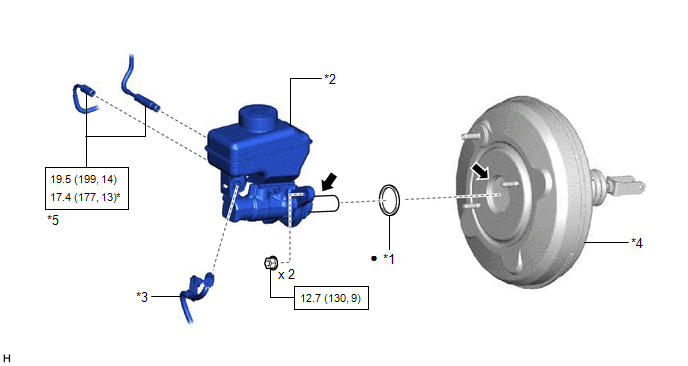

Fig 3: Brake Actuator Replacement Components With Torque Specifications [11/2017 - 01/2023] (3 Of 5)
| *1 | BRAKE MASTER CYLINDER O-RING | *2 | BRAKE MASTER CYLINDER SUB-ASSEMBLY |
| *3 | CONNECTOR | *4 | BRAKE BOOSTER ASSEMBLY |
| *5 | BRAKE LINE | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | * | For use with a union nut wrench | |
| • | Non-reusable part | Grease |

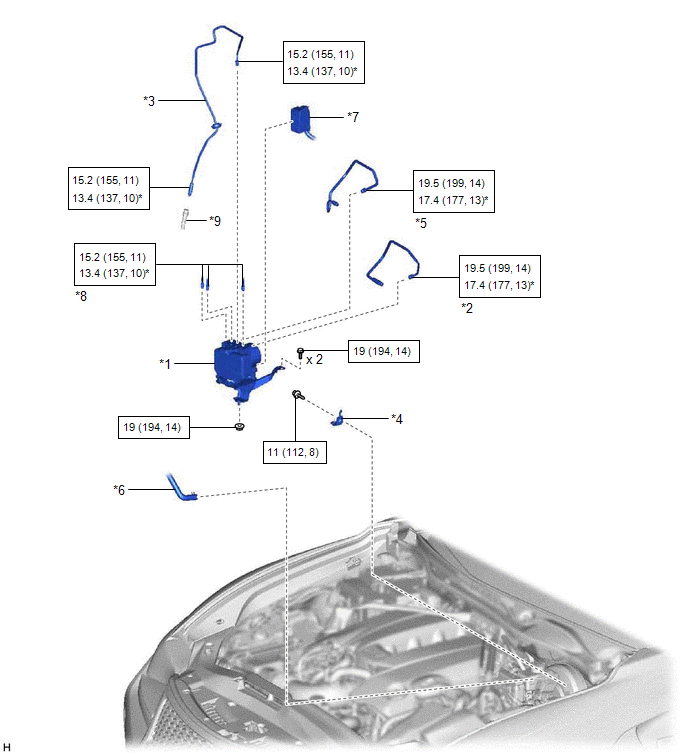

Fig 4: Brake Actuator Replacement Components With Torque Specifications [11/2017 - 01/2023] (4 Of 5)
| *1 | BRAKE ACTUATOR WITH BRACKET | *2 | FRONT NO. 1 BRAKE TUBE |
| *3 | FRONT NO. 3 BRAKE TUBE | *4 | NO. 5 BRAKE ACTUATOR BRACKET |
| *5 | REAR NO. 1 BRAKE TUBE | *6 | UNION TO CHECK VALVE HOSE |
| *7 | CONNECTOR | *8 | BRAKE LINE |
| *9 | FRONT FLEXIBLE HOSE | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | * | For use with a union nut wrench |

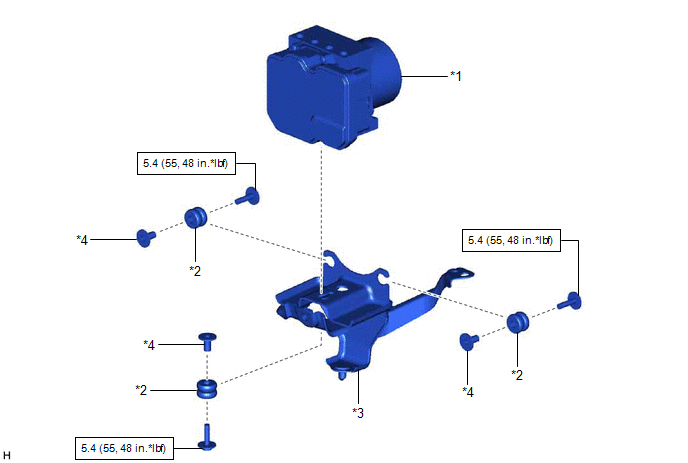

Fig 5: Brake Actuator Replacement Components With Torque Specifications [11/2017 - 01/2023] (5 Of 5)
| *1 | BRAKE ACTUATOR ASSEMBLY | *2 | BRAKE ACTUATOR BOLT CUSHION |
| *3 | BRAKE ACTUATOR BRACKET ASSEMBLY | *4 | BRAKE ACTUATOR CASE COLLAR |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
