Removal [09/2014 - ]: Procedure

  1. REMOVE SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY

    Refer to REMOVAL [09/2014 - 11/2017] , or refer to REMOVAL [11/2017 - 01/2023] , or refer to REMOVAL [01/2023 - ]

  2. REMOVE STEERING SENSOR

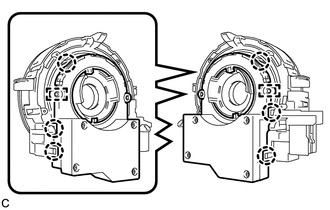

    1. Disengage the 6 claws and 2 pins, and remove the steering sensor from the spiral cable sub-assembly.
      GTY323092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not damage the claws and pins of the spiral cable sub-assembly.
